Removal and replacement procedures 29
5.

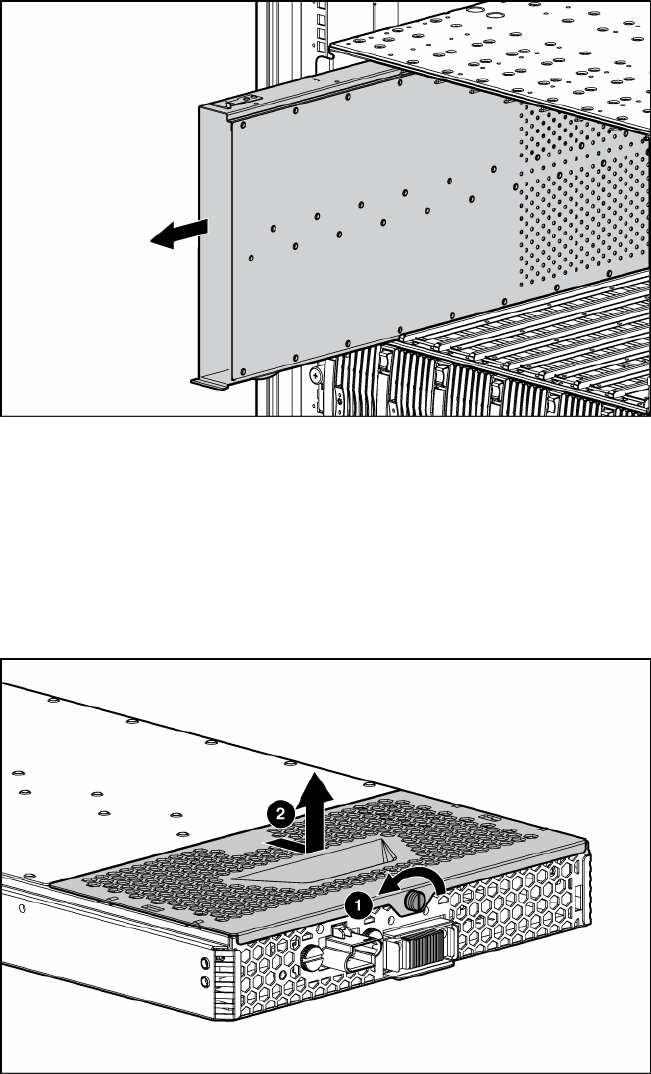

Remove the HP BladeSystem p-Class sleeve.
To replace the component, reverse the removal procedure.
HP BladeSystem p-Class sleeve board
To remove the component:
1. Remove the HP BladeSystem p-Class sleeve ("HP BladeSystem p-Class sleeve" on page 28).
2. Remove the HP BladeSystem p-Class sleeve access panel.
