Server blade blanks
CAUTION: To prevent improper cooling and thermal damage, do not operate the server blade
enclosure unless all bays are populated with either a component or a blank.

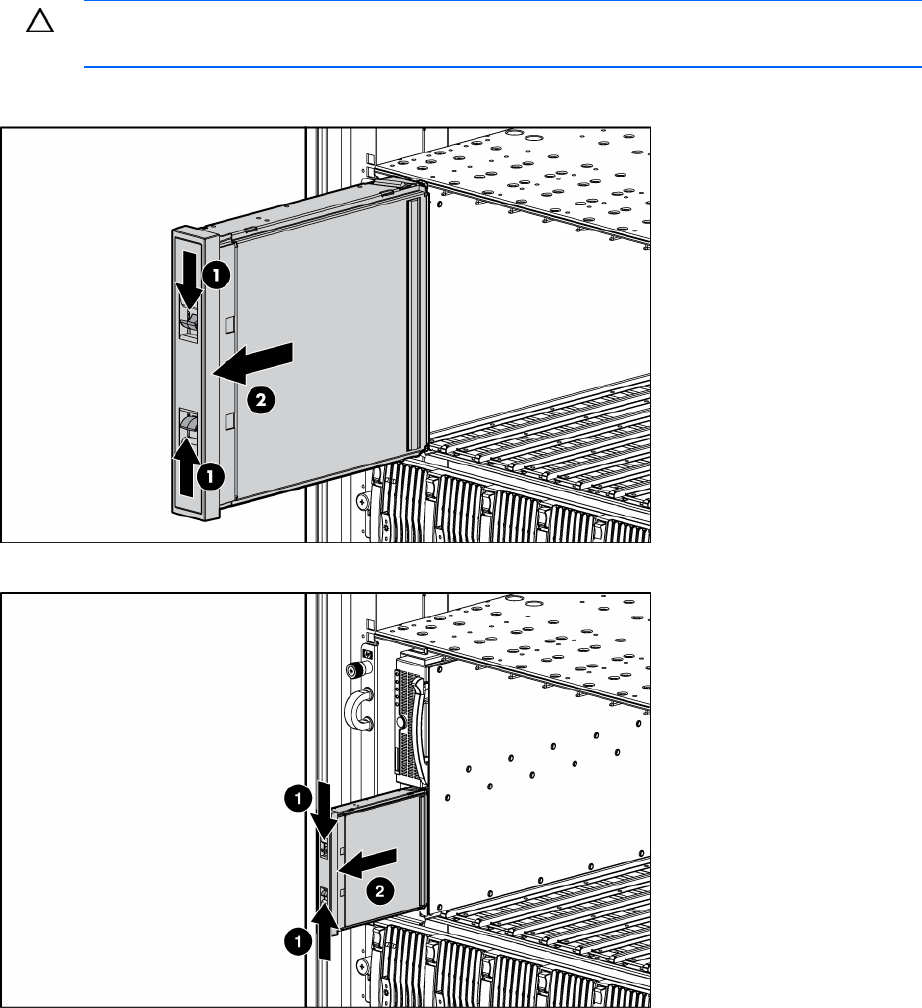

To remove the 6U server blade blank:
To remove the 3U server blade blank:
HP BladeSystem p-Class sleeve
To remove the component:
1. Power down the server blade (on page 13).
2. Remove the server blade (on page 13).
3. Remove the second server blade, if installed.
4. Remove any 3U server blade blanks, if installed ("Server blade blanks" on page 28).
