Removal and replacement procedures 26
To replace the component, reverse the removal procedure.
Power button/LED cable
To remove the component:
1. Power down the server blade (on page 13).
2. Remove the server blade (on page 13).
3. Remove the drive cage assembly ("ATA drive cage assembly" on page 14, "SAS drive cage
assembly" on page 15).
4. Remove the air baffle, if necessary ("Air baffle (dual-core processor models only)" on page 18).
5. Remove the fan assembly ("Fan assembly" on page 23).

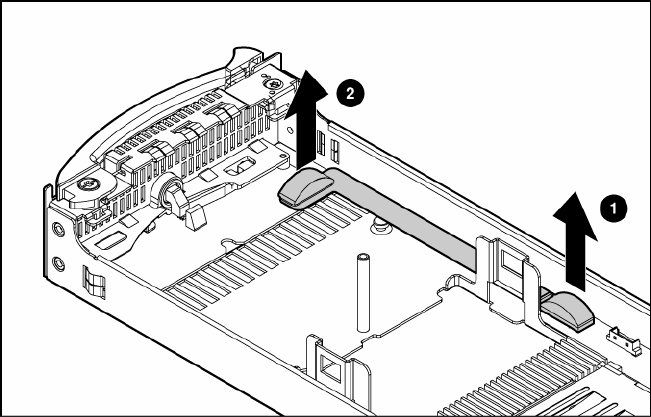

6. Remove the power button/LED cable.
To replace the component, reverse the removal procedure.
Server blade handle
The server blade handle contains a serial number that maintains the original server blade warranty.
When replacing a system board assembly, remove the server blade handle and install it on the
replacement system board assembly.
To remove the component:
1. Power down the server blade (on page 13).
2. Remove the server blade (on page 13).
