Removal and replacement procedures 25
2.
Remove the server blade (on page 13).
3. Remove the Dual Port Fibre Channel Adapter, if installed ("Dual Port Fibre Channel Adapter (2 GB)"
on page 24).

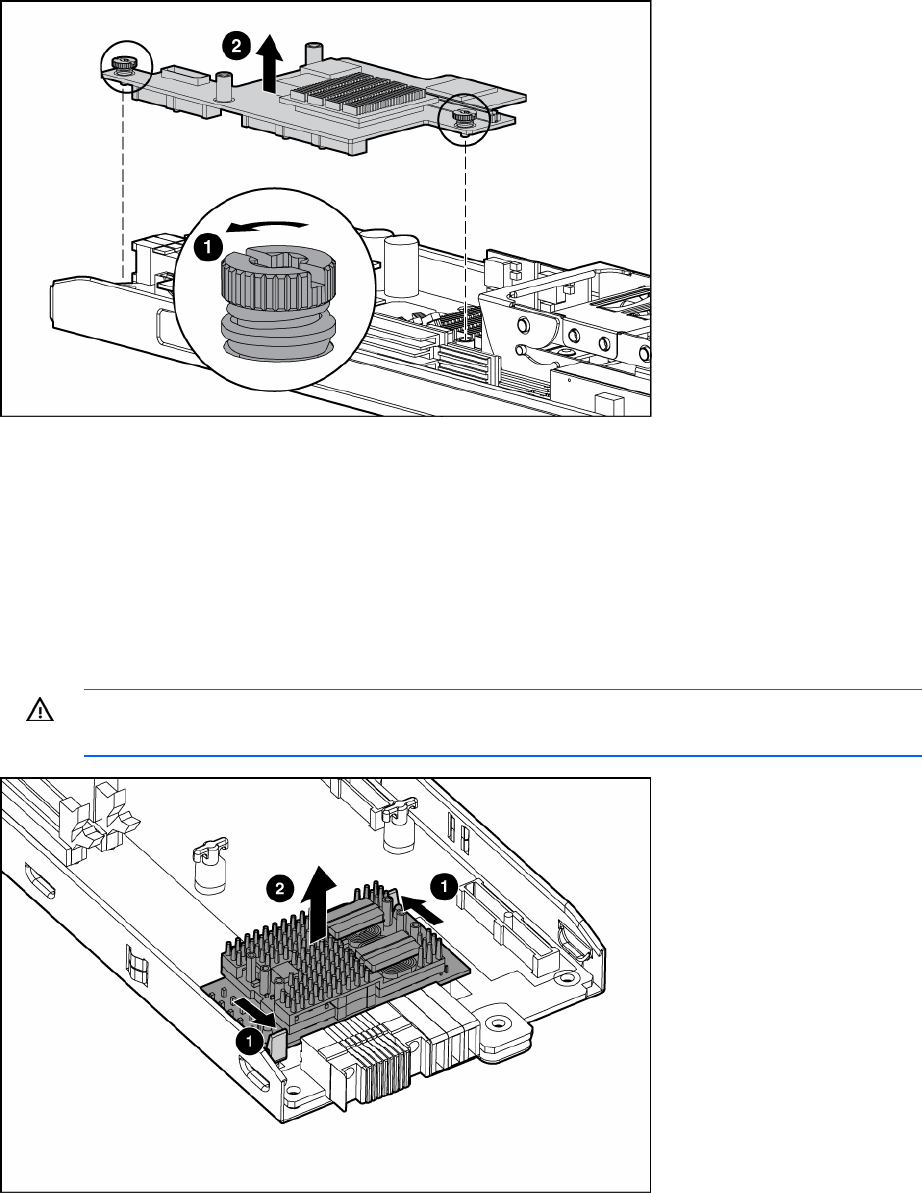

4. Remove the NIC riser board.
To replace the component, reverse the removal procedure.
Power converter module
To remove the component:
1. Power down the server blade (on page 13).
2. Remove the server blade (on page 13).
3. Remove the power converter module.
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
