Removal and replacement procedures 24
5.

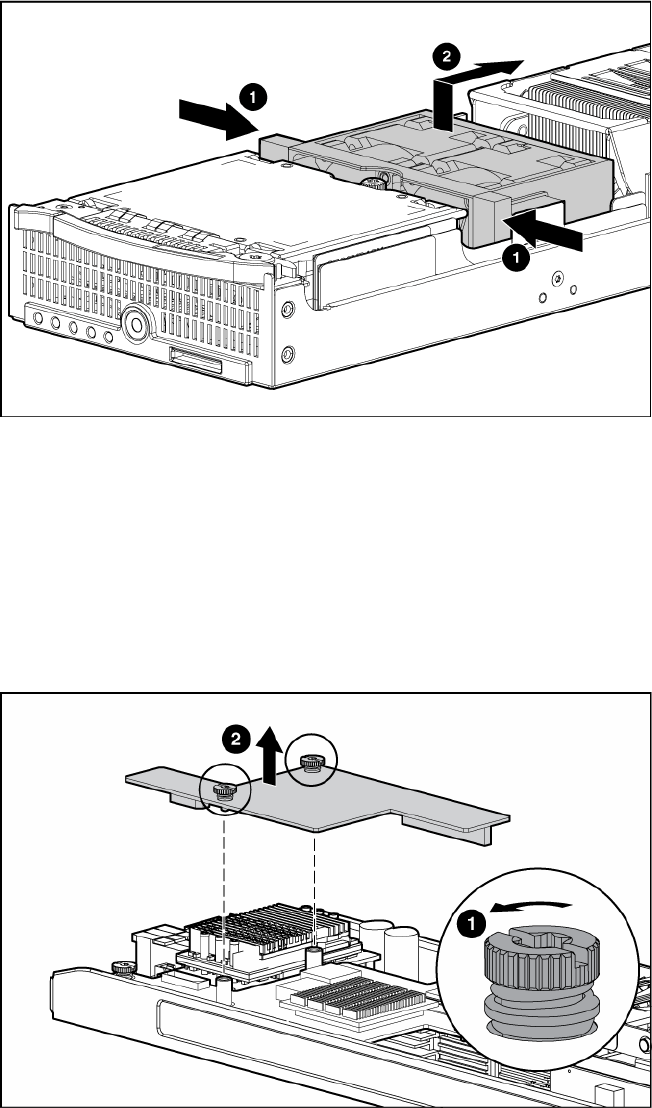

Remove the fan assembly.
To replace the component, reverse the removal procedure.
Dual Port Fibre Channel Adapter (2 GB)
To remove the component:
1. Power down the server blade (on page 13).
2. Remove the server blade (on page 13).
3. Remove the FC adapter.
To replace the component, reverse the removal procedure.
NIC riser board
To remove the component:
1. Power down the server blade (on page 13).
