Removal and replacement procedures 23
4.

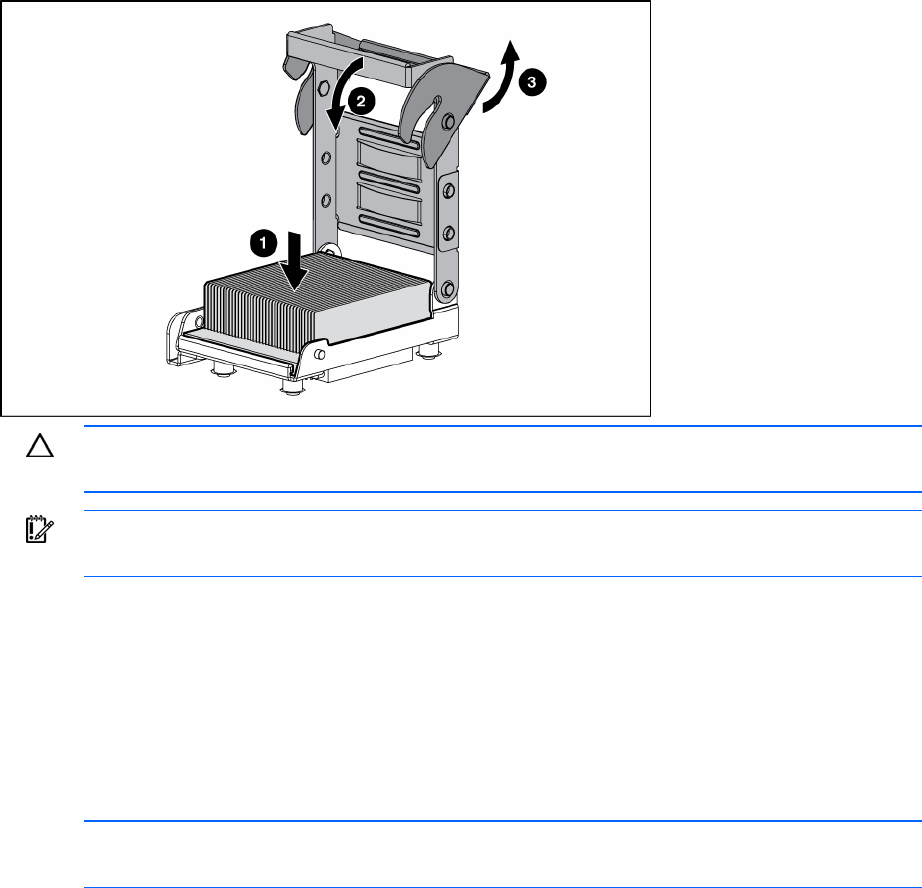

Insert the heatsink and close the processor cage. Closing the processor cage aligns the heatsink.
CAUTION: To ensure proper cooling of the dual-core processor, the old air baffle must be
replaced when upgrading from a single-core processor to a dual-core processor.
IMPORTANT: To ensure proper cooling, be sure the correct processor air baffle is installed at
all times.
Fan assembly
To remove the component:
1. Power down the server blade (on page 13).
2. Remove the server blade (on page 13).
3. Remove the air baffle ("Air baffle (dual-core processor models only)" on page 18).
NOTE: Dual-core processor models only.
4. Disconnect the fan assembly cables from the system board.
