Removal and replacement procedures 21
3.

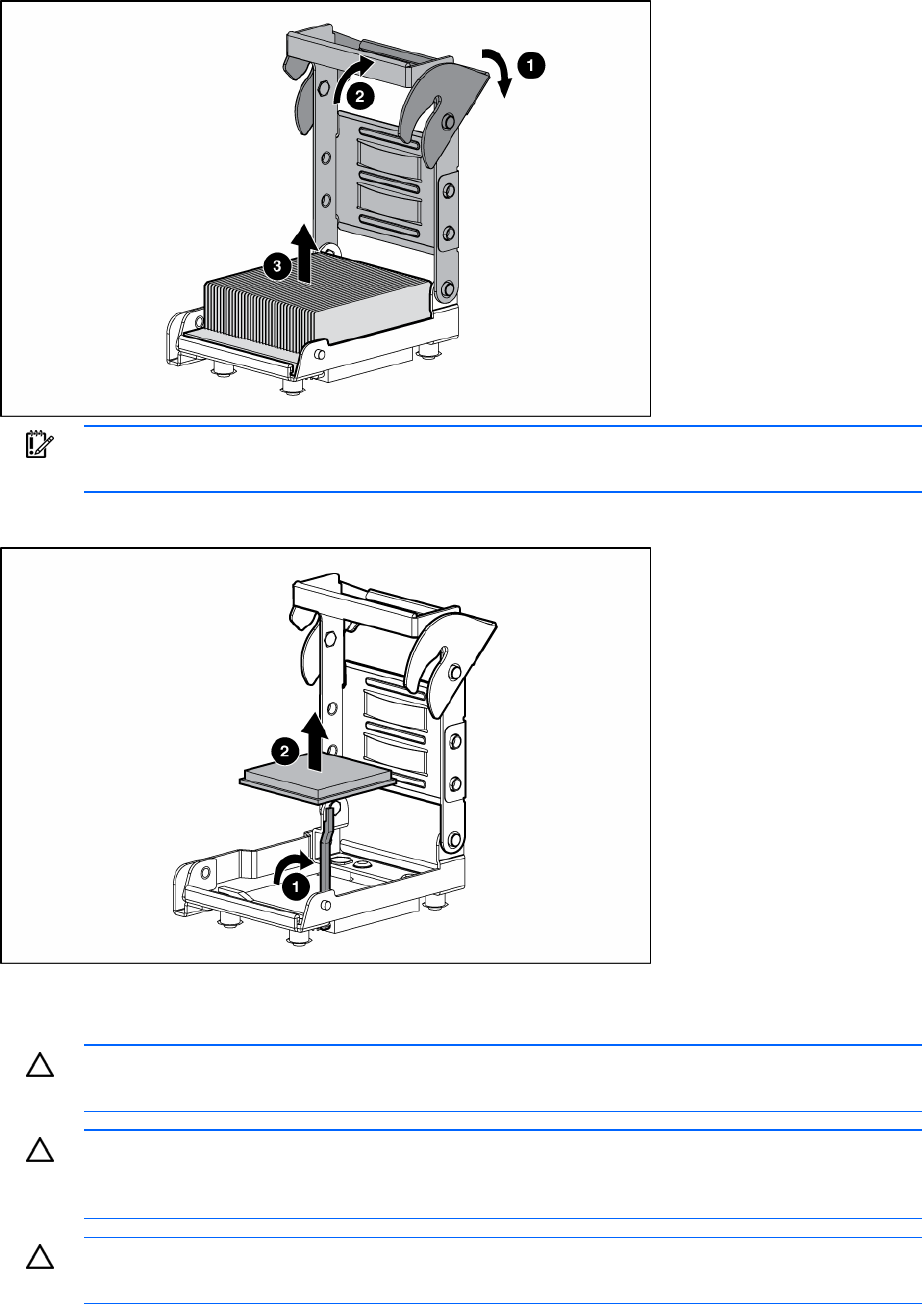

Open the processor cage and remove the heatsink.
IMPORTANT: Processor socket 1 must always be populated. If processor socket 1 is empty, the
server blade does not power up.
4. Remove the processor.
To replace the component:
1. Install the processor.
CAUTION: Be sure that the processor socket locking lever is open before installing the
processor into the socket.
CAUTION: The processor is designed to fit one way into the socket. Use the alignment guides
on the processor and socket to properly align the processor with the socket. Refer to the server
blade hood label for specific instructions.
CAUTION: Do not bend or damage the pins beneath the processor.
