Removal and replacement procedures 19
3.

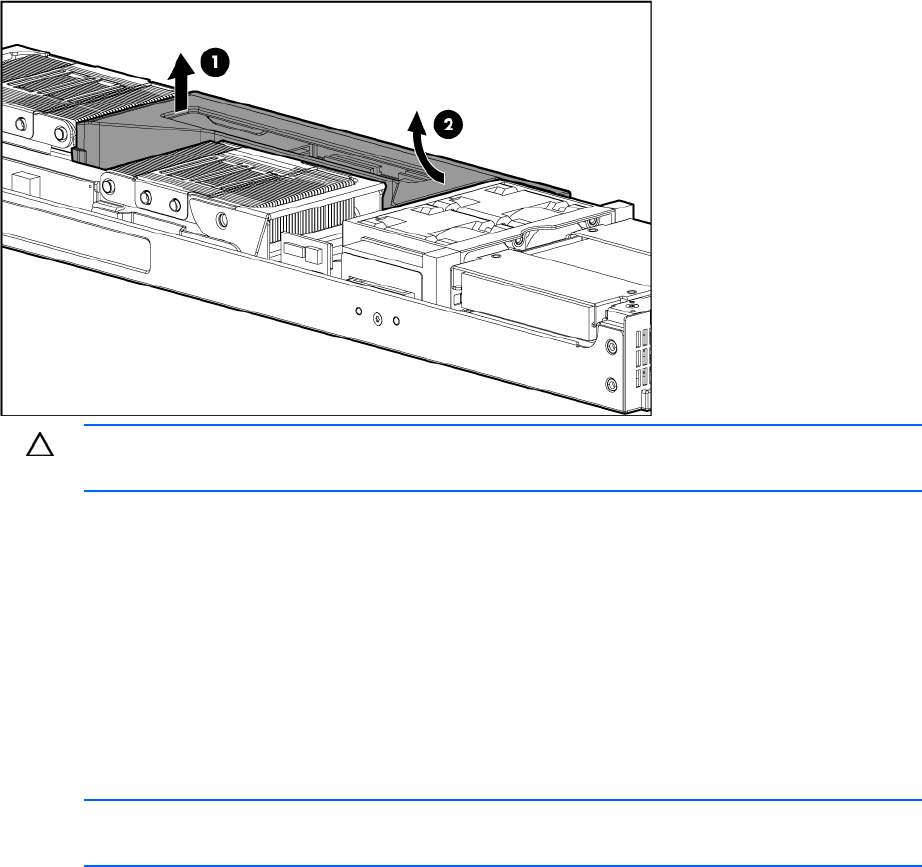

Remove the air baffle.
CAUTION: To ensure proper airflow, always install the air baffle when installing a dual-core
processor.
To replace the component, reverse the removal procedure.
DIMMs
To remove the component:
1. Power down the server blade (on page 13).
2. Remove the server blade (on page 13).
3. For DIMM bank B, remove the air baffle. ("Air baffle (dual-core processor models only)" on page
18)
NOTE: Dual-core processor models only.
