Removal and replacement procedures 18
4.

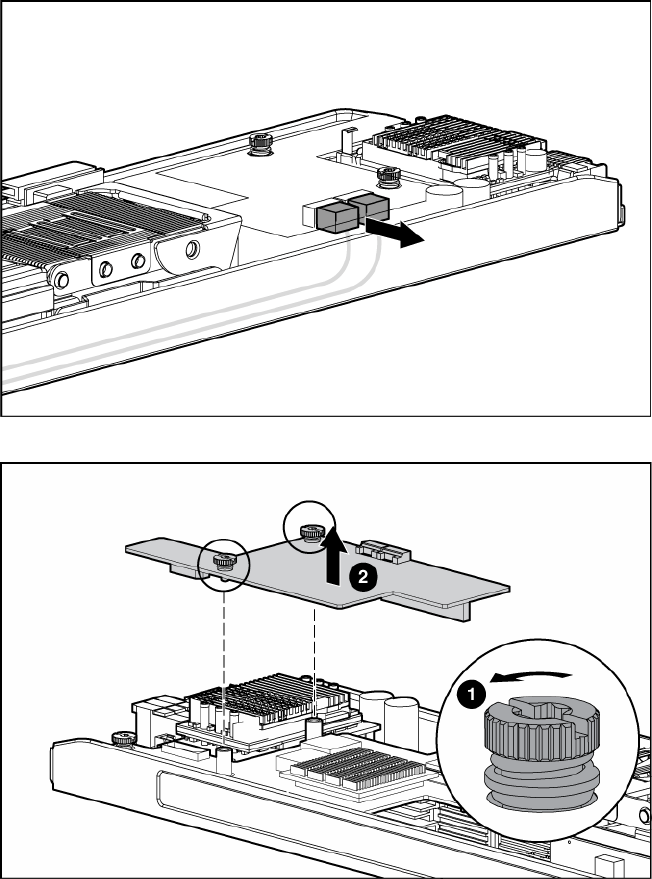

Disconnect the cables from the controller.
5. Remove the SAS controller.
To replace the component, reverse the removal procedure.
Air baffle (dual-core processor models only)
To remove the component:
1. Power down the server blade (on page 13).
2. Remove the server blade (on page 13).
