Removal and replacement procedures 17
5.

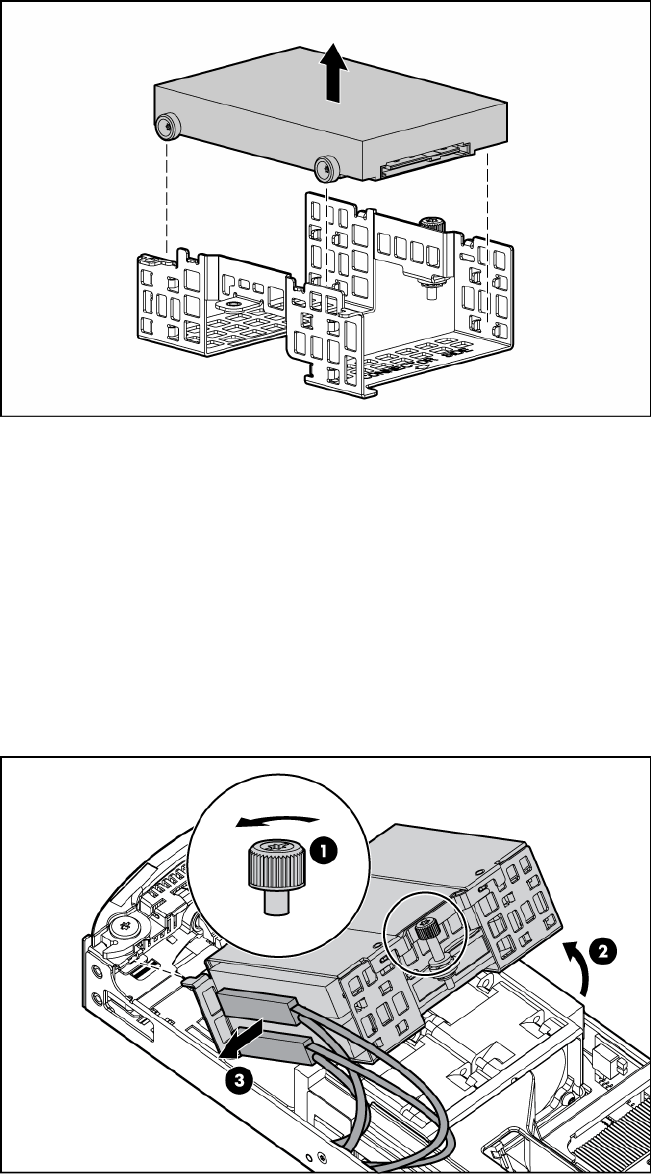

Remove the hard drive.
To replace the component, reverse the removal procedure.
The drive cage assembly lower drive bay is designated as the primary hard drive bay and must be
populated first.
SAS controller and cables
To remove the component:
1. Power down the server blade (on page 13).
2. Remove the server blade (on page 13).
3. Disconnect the hard drive cables from the hard drives.
