Removal and replacement procedures 16
3.

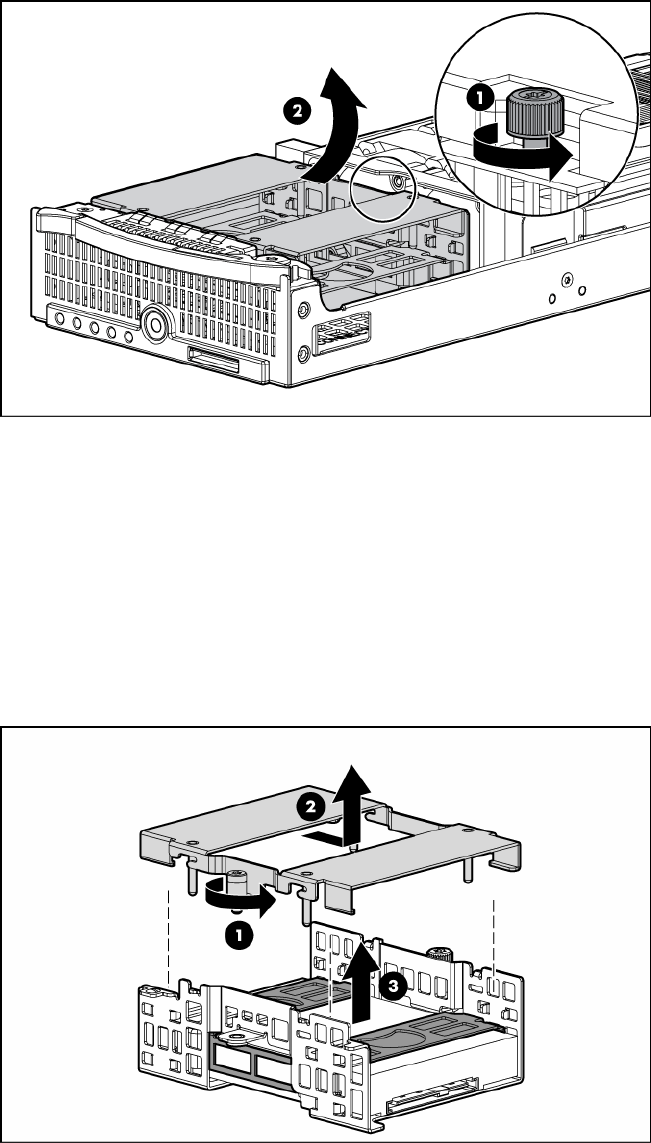

Remove the drive cage assembly.
To replace the component, reverse the removal procedure.
SAS hard drive option
To remove the component:
1. Power down the server blade (on page 13).
2. Remove the server blade (on page 13).
3. Remove the SAS drive cage assembly (on page 15).
4. Remove the cover plate and, if necessary, the center plate.
