Removal and replacement procedures 15
4.

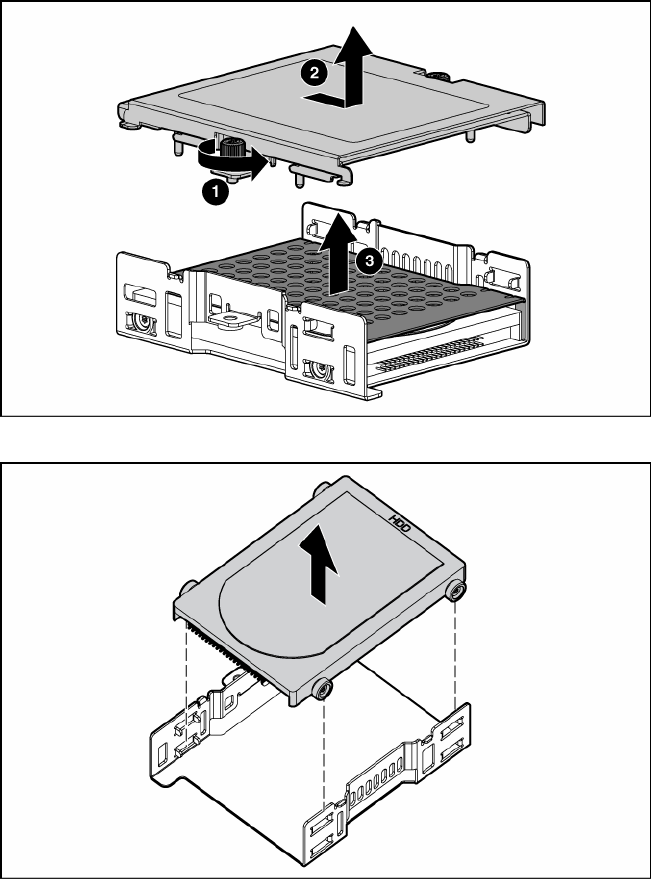

Remove the cover plate and, if necessary, the center plate.
5. Remove the drive from the cage.
To replace the component, reverse the removal procedure.
The drive cage assembly lower drive bay is designated as the primary hard drive bay and must be
populated first.
Before installing a hard drive, be sure the jumper on the hard drive is set to CS so that the drive device ID
is determined by the hard drive connection to the hard drive cable.
SAS drive cage assembly
To remove the component:
1. Power down the server blade (on page 13).
2. Remove the server blade (on page 13).
