Removal and replacement procedures 45
Server blade handle
To remove the component:
1. Power down the server blade (on page 23).
2. Remove the server blade (on page 23).
3. Remove the access panel ("Access panel" on page 24).
4. Remove the hard drive cage/bezel assembly ("Hard drive cage/bezel assembly" on page 27).

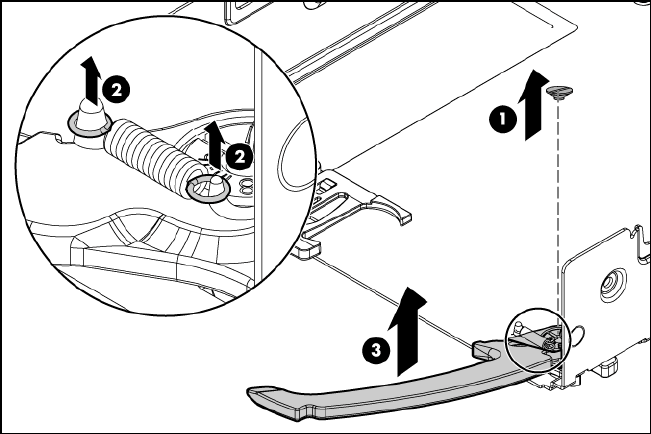

5. Remove the server blade handle.
To replace the component, reverse the removal procedure.
Release button
To remove the component:
1. Power down the server blade (on page 23).
2. Remove the server blade (on page 23).
3. Remove the access panel ("Access panel" on page 24).
4. Remove the hard drive cage/bezel assembly ("Hard drive cage/bezel assembly" on page 27).
5. Open the server blade handle.
