Removal and replacement procedures 40
12.

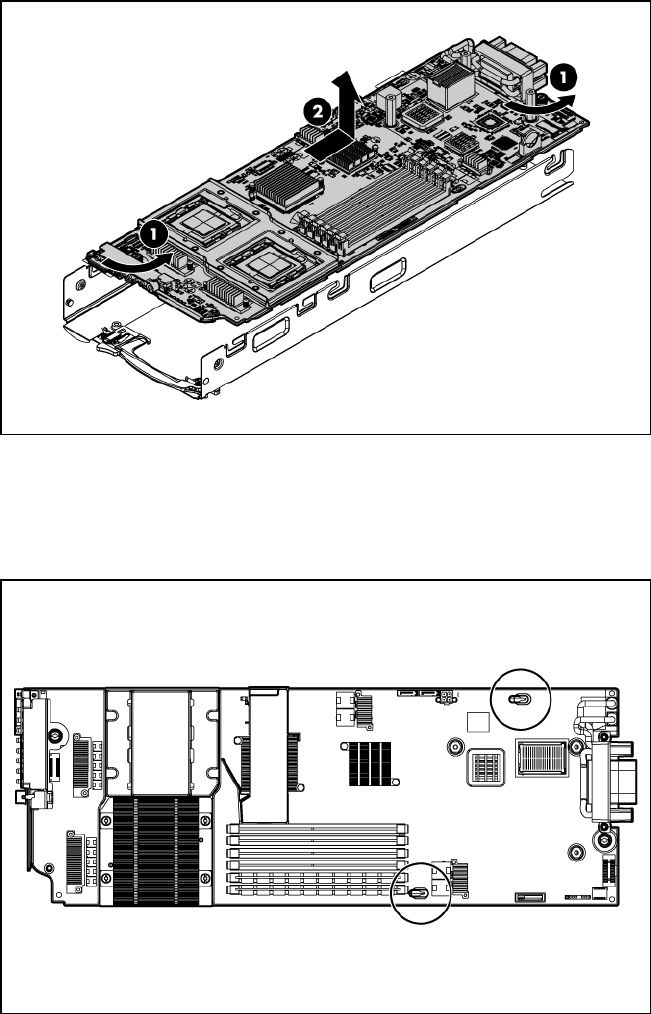

Remove the system board.
To replace the system board:
1. Extend the serial label pull tab from the front of the server blade. Be sure the serial label pull tab
does not become trapped under the system board during installation.
2. Locate the system board alignment keys.
