Removal and replacement procedures 38
7.

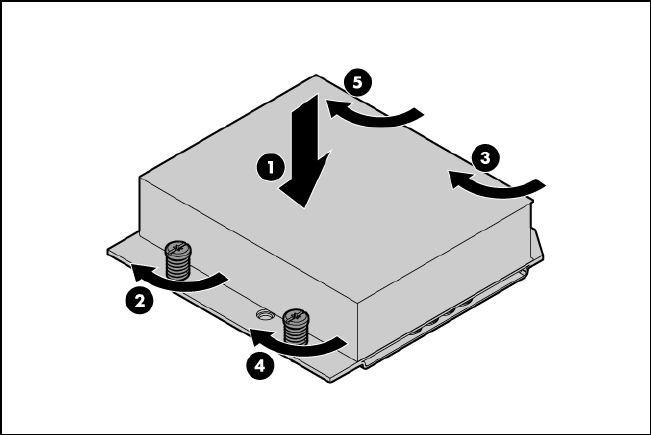

Install the heatsink.
8. Install the hard drive cage/bezel assembly ("Hard drive cage/bezel assembly" on page 27).
9. Install the access panel ("Access panel" on page 24).
10. Install the server blade.
System board
To remove the component:
1. Power down the server blade (on page 23).
2. Remove the server blade (on page 23).
3. Remove the access panel ("Access panel" on page 24).
4. Remove all DIMMs ("DIMMs" on page 24).
5. Remove the air baffle ("Air baffle" on page 24).
6. Remove the mezzanine card ("Mezzanine card" on page 25).
7. Remove the battery tray ("Battery tray" on page 26).
8. Remove the hard drive cage/bezel assembly ("Hard drive cage/bezel assembly" on page 27).
9. Remove the heatsink ("Heatsink" on page 31).
