Removal and replacement procedures 30
8.

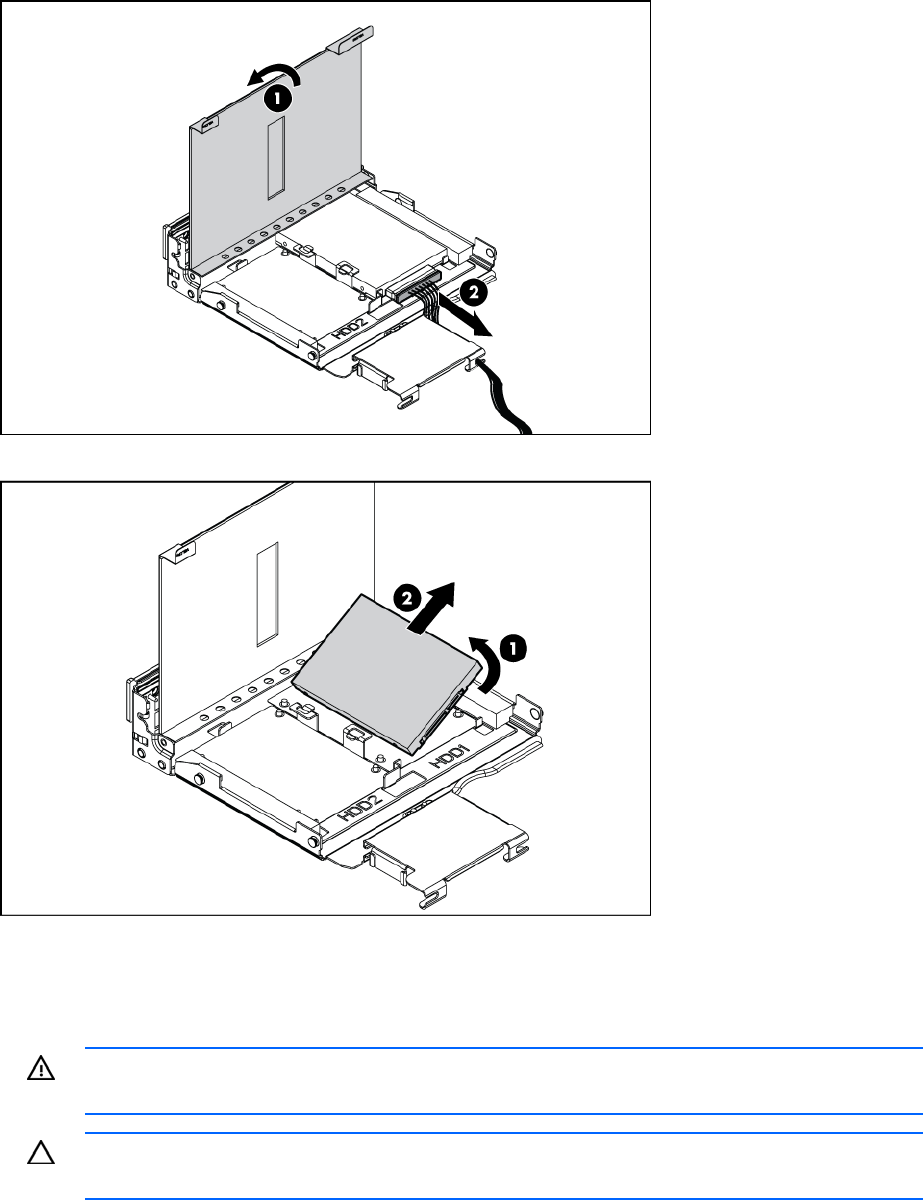

Open the hard drive cage and disconnect the cable from the hard drive.
9. Remove the hard drive.
To replace the component, reverse the removal procedure.
Heatsink blank
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
CAUTION: To prevent possible server blade overheating, always populate processor socket 2
with a processor and a heatsink or a processor socket cover and a heatsink blank.
To remove the component:
1. Power down the server blade (on page 23).
