Removal and replacement procedures 28
4.

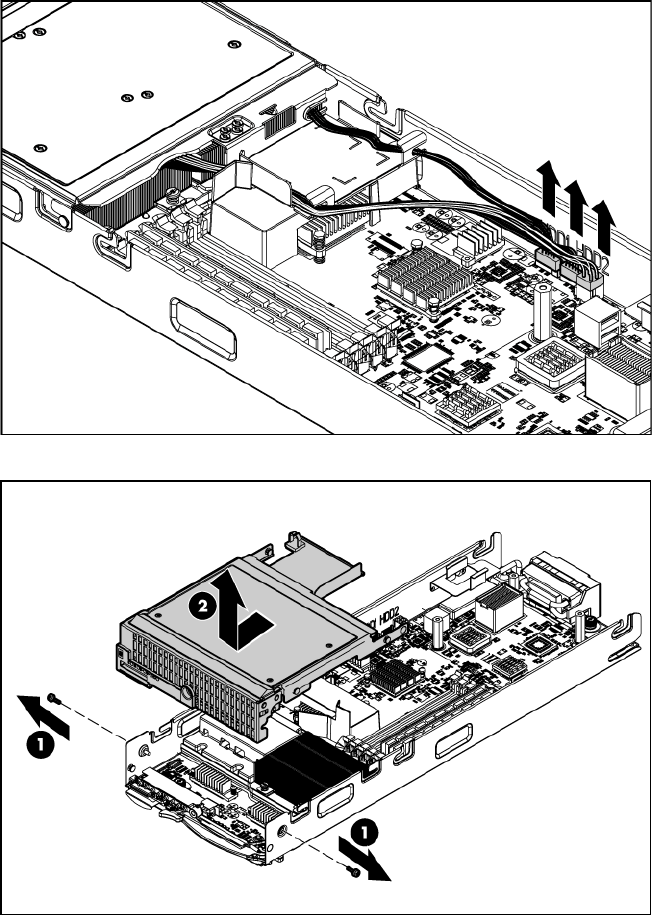

Disconnect the power and data cable from the system board.
5. Remove the hard drive cage/bezel assembly.
To replace the component, reverse the removal procedure.
Hard drive
To remove the component:
1. Back up all server data on the hard drive.
2. Power down the server blade (on page 23).
3. Remove the server blade (on page 23).
4. Remove the access panel ("Access panel" on page 24).
