Removal and replacement procedures 25
3.
Remove the access panel ("Access panel" on page 24).

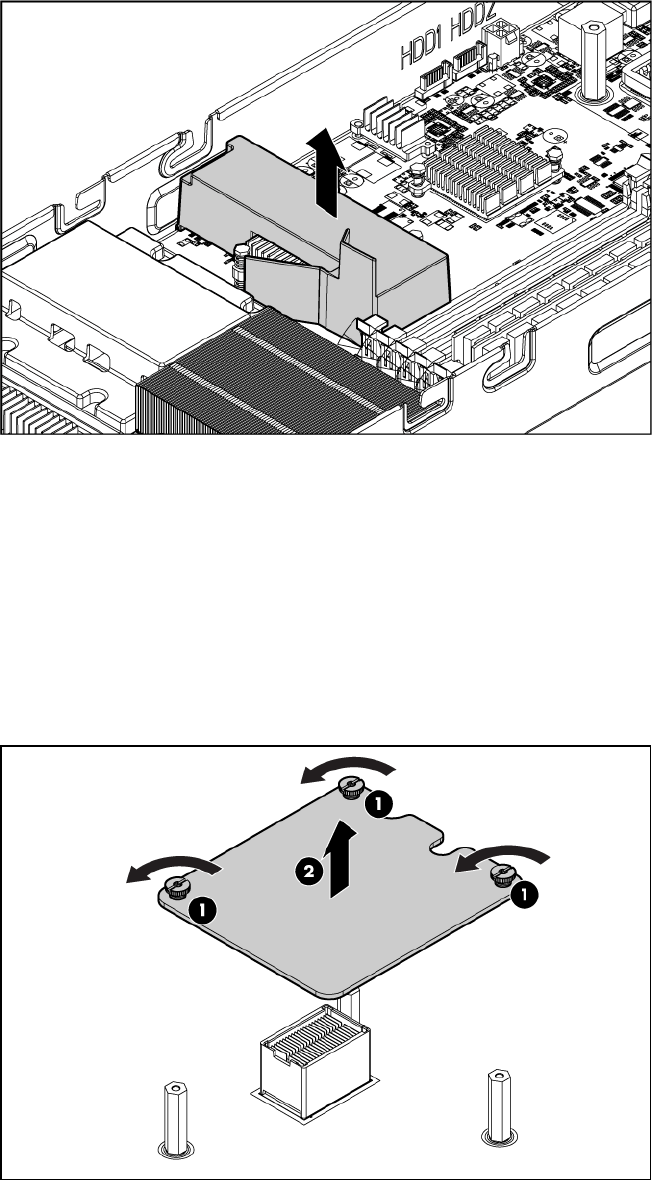

4. Remove the air baffle.
To replace the component, reverse the removal procedure.
Mezzanine card
To remove the component:
1. Power down the server blade (on page 23).
2. Remove the server blade (on page 23).
3. Remove the access panel ("Access panel" on page 24).
4. Remove the mezzanine card.
To replace the component, reverse the removal procedure.
