8.15 HP Utility Meter User's Guide (January 2010)

NOTE: The ID Number can be found in the <UniqueIdentifier> tag in a PPU usage report. For
a PPU WBEM Partition/Server it can also be found by using the View Device feature (see Section 3.5.3:
“View Device”).

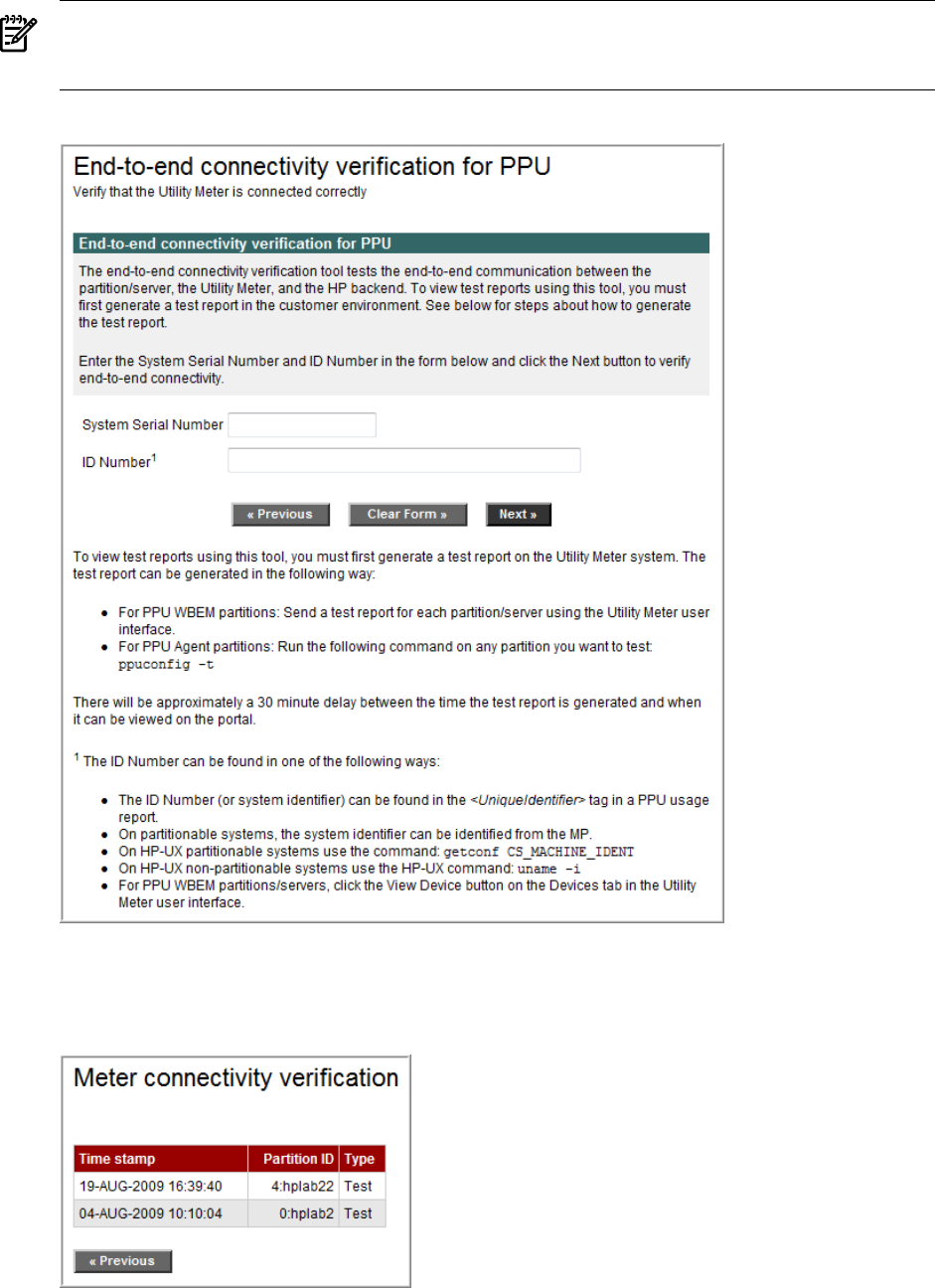

Figure 4-2 End-to-End Connectivity Verification Input Page
4. If you see the following page, then the PPU partition is properly connected to the UPS portal through
the Utility Meter.
Figure 4-3 End-to-End Connectivity Verification Page
The date and time in the Time stamp field should be similar to the date and time you performed the
meter connectivity verification test.
82 Verifying Utility Meter Operation
