This is testing the connection to Command View EVA instance.
>> testing device 01.02.03.04...
%%Normal Completion: device response
Agent Response:
01.02.03.04 is responding, polled OK.
.............
done!
3.6.2.2 Device Connection – PPU WBEM Partition/Server
Follow this procedure to verify that PPU WBEM Partitions/Servers are connected to the Utility Meter:
1. Start the Utility Meter GUI. For details, see Section 3.1: “Starting the Utility Meter GUI”.
2. In the Utility Meter GUI, click the Diagnose tab.
3. In the Utility Meter GUI's Managed Devices Tree (left pane), click the PPU WBEM Partition/Server
that you want to verify is connected to the Utility Meter.
4. In the Utility Meter GUI's Tasks (right) pane, click the Device Connection button. This will test the
connectivity from the Utility Meter to the PPU WBEM Partition/Server.
5. The Diagnose Device window appears. In this window, click the Diag button.

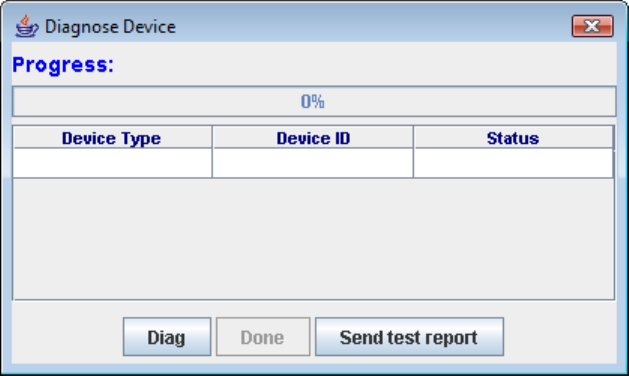

Figure 3-26 Diagnose PPU WBEM Partition/Server Window
6. If the Utility Meter is connected to the specified partition/server, then the Status field has the value
ON.
3.6 Utility Meter Diagnose Tasks 71
