8.15 HP Utility Meter User's Guide (January 2010)

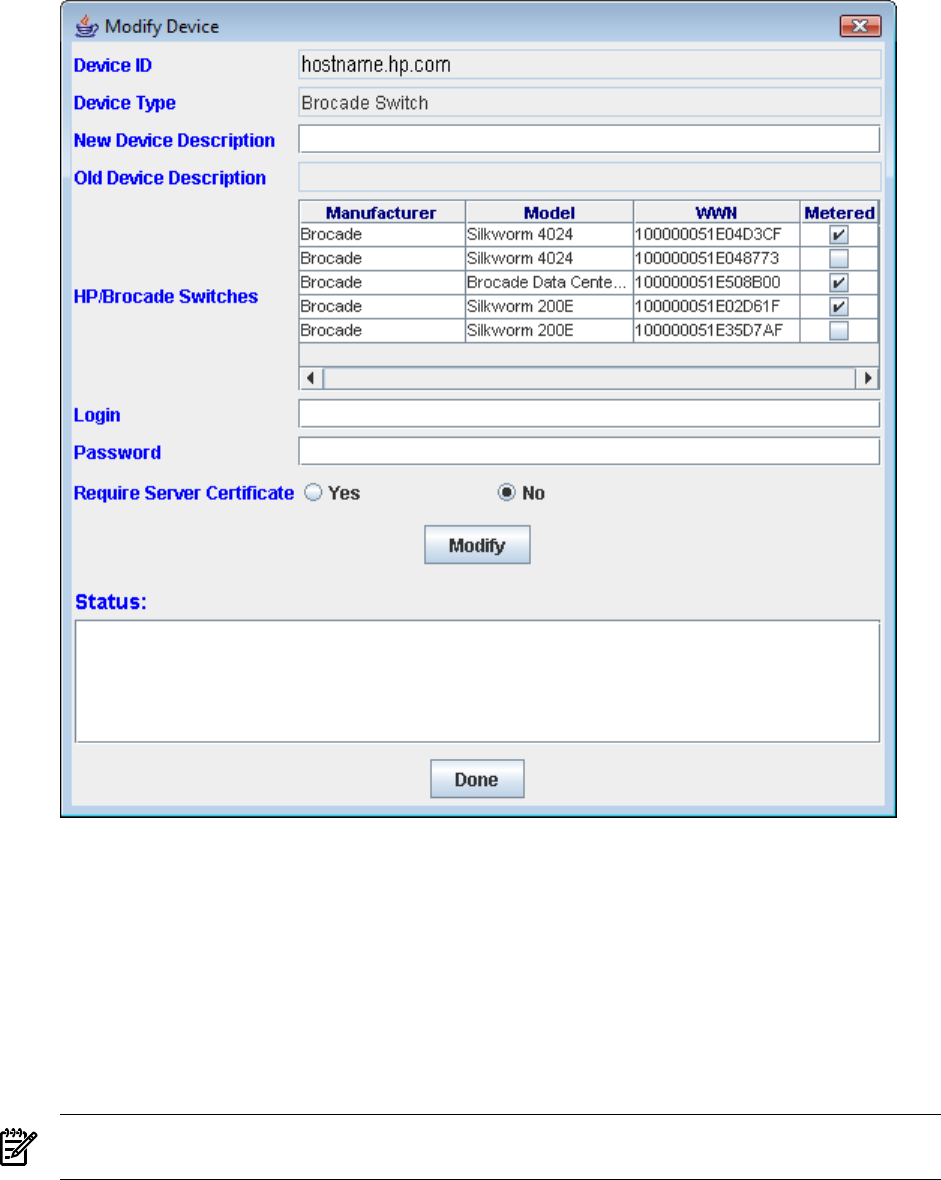

Figure 3-18 Modify HP/Brocade Switch Dialog Box
5. The HP/Brocade Switches row lists switches that can be metered. To enable metering on a switch,
click in the check box located in the Metered column next to the switch(s) you want to meter. Switches
that are being metered will have a check mark in their check box.
To disable metering on a switch, click in the check box to remove the check mark.
You can also modify other fields for the SMI-S device in this dialog box.
6. Click the Modify button to make the changes. (You can cancel any modifications by clicking the Done
button without clicking the Modify button. This will close the dialog box without making changes.)
7. After you have completed the changes, click the Done button to close the Modify Device dialog
box.
NOTE: If an error occurs with the requested changes, the dialog box remains open and the Status
window displays the error message.
3.5.3 View Device
This task allows you to view the details of PPU WBEM Partitions/Servers, including the device type, OS type,
serial number, and device identifier.
3.5 Utility Meter Devices Tasks 65
