3.5.1.1 Add an EVA Device
IMPORTANT: The SMI-S service on the EVA Command View server must be enabled for metering EVA
devices.
This task allows you to add one or more EVA devices (Command View server) and EVA disk arrays to the
Utility Meter. The configured EVA devices and EVA disk arrays are visible in the Utility Meter GUI's Managed
Devices Tree in the Managed Devices (left) pane.
Follow the procedure in this section if the CV server (EVA device) that manages the physical disk array is
not configured and it is not visible in the Utility Meter GUI's Managed Devices Tree or if you have
recently added new physical disk arrays to a CV server and the CV server is already configured in the Utility
Meter, but the disk arrays do not appear in the Utility Meter GUI's Managed Devices Tree.
If a disk array is already configured and visible in the Utility Meter GUI's Managed Devices Tree, but
the disk array appears as a Non-URS Device in the Utility Meter GUI's Managed Devices Tree, follow
the instructions in Section 3.5.2.1: “Change a non-URS Disk Array to URS”.
Follow this procedure to add an EVA device into the Utility Meter:
1. Start the Utility Meter GUI. For details, see Section 3.1: “Starting the Utility Meter GUI”.
2. In the Utility Meter GUI, click the Devices tab.
3. In the Utility Meter GUI Tasks (right) pane, click the Add Device button.
The Utility Meter GUI displays the Add Device dialog box.

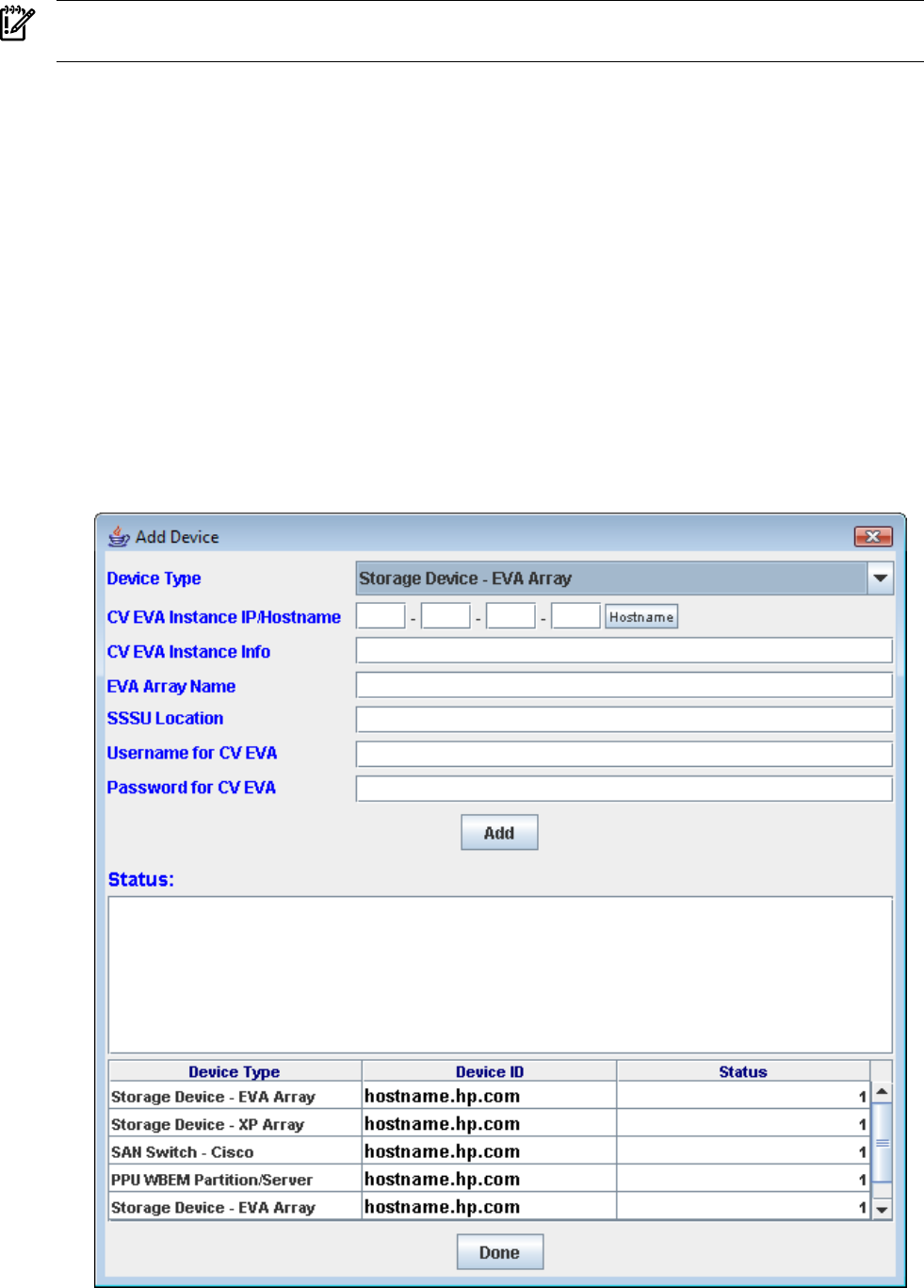

Figure 3-10 Add Device Dialog Box for EVA Device
