The information in the Managed Devices pane is referred to as the Managed Devices Tree. To display
all of the storage and PPU device nodes that are currently configured in the Utility Meter, click the expansion
buttons in the Managed Devices pane.

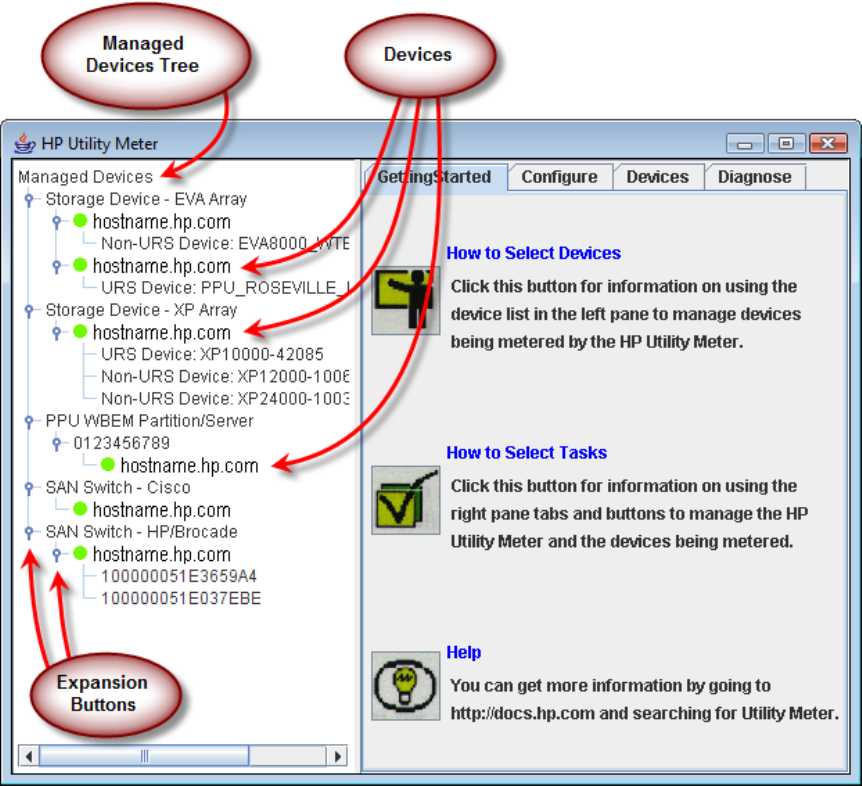

Figure 3-3 Utility Meter GUI Managed Devices Tree
Note that the nodes for storage devices in the Managed Devices Tree include both Command View
servers (devices) and the physical disk arrays they manage. The physical disk arrays appear as child nodes
under the Command View server's parent node.
When PPU WBEM Partitions are added they appear as child nodes under the serial number for the complex
they belong to.
To exit and close the Utility Meter GUI, click the upper-left corner of the GUI window and then select Close
in the drop-down list.
