If you know the task tab you want to access before you start the Utility Meter GUI, you can specify one of
the options in Table 3-2 as a parameter to the executable to start the GUI.
Table 3-2 Starting the Utility Meter GUI with Specific Tabs
TabOption
GettingStarted0 or no option
Configure1
Devices2
Diagnose3
For example, to start the Utility Meter GUI with the Configure tab selected, execute the following command:
# /opt/meter/bin/umGUI 1
3.2 The Main Window
The Utility Meter GUI main window has two panes.
• The Managed Devices pane on the left lists the storage and PPU devices that are configured in the
Utility Meter.
• The Tasks pane on the right displays a set of tasks you can accomplish depending on the tab selected.
You click the appropriate task button in the Tasks pane to perform the task.

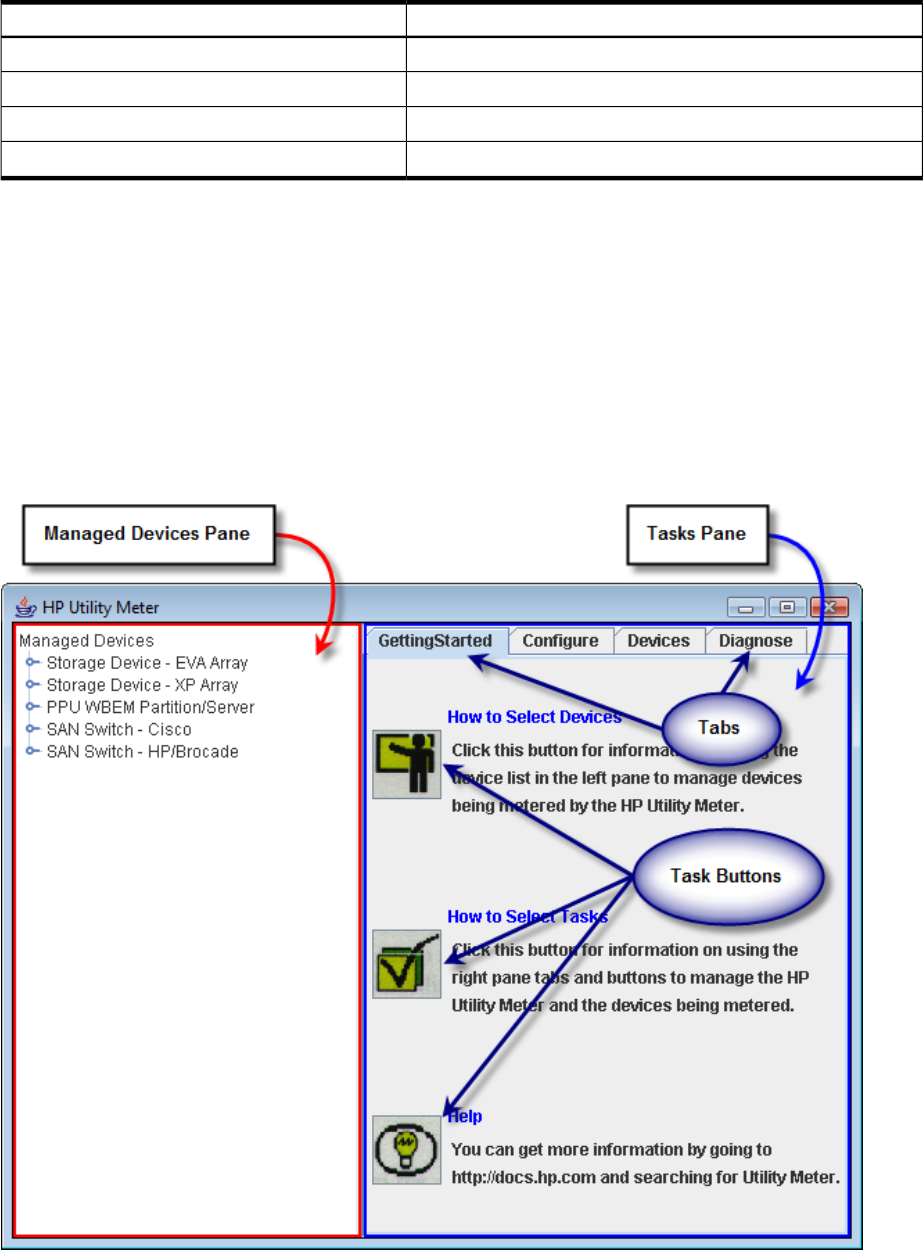

Figure 3-2 Utility Meter GUI Main Window Panes
