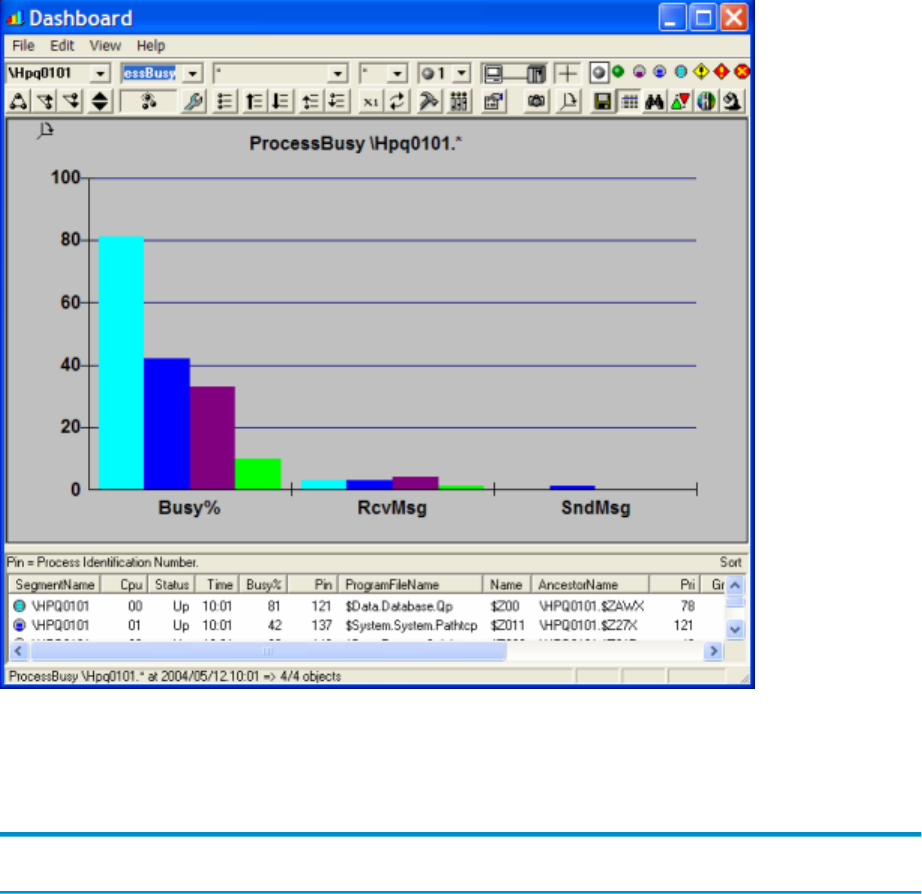

Figure 6-3 ProcessBusy Entity Screen
ProcessBusy Entity Attributes
Table 6-3 describes the attributes displayed on the ProcessBusy entity screen.
Table 6-3 ProcessBusy Entity Attributes
Default Attribute
for Grid?
Default Attribute
for Graph?
DescriptionAttribute
YesNoName of the process that started the busy
process. This name consists of the segment
name, followed by either a process name, like
$ZAAM, or pair of identifying numbers like
1,177. If the ancestor name is unavailable, the
displayed value is N/A.
AncestorName
YesYesAverage percentage of the processing node that
is busy during the sample interval.
Busy%
YesNoProcessing node number.Cpu
YesNoProcess security group accessor ID.Group
YesNoProcess logical name.Name
YesNoName of Neoview segment.SegmentName
YesNoNumber of memory manager pages allocated
to and consumed by the process.
Pages
YesNoProcess identification number.Pin
YesNoProcess execution priority.Pri
ProcessBusy Entity 87
