1. Using Systems Insight Manager, select Tools→HP Matrix OE visualization.
2. Select Modify→Logical Server Storage Pools.

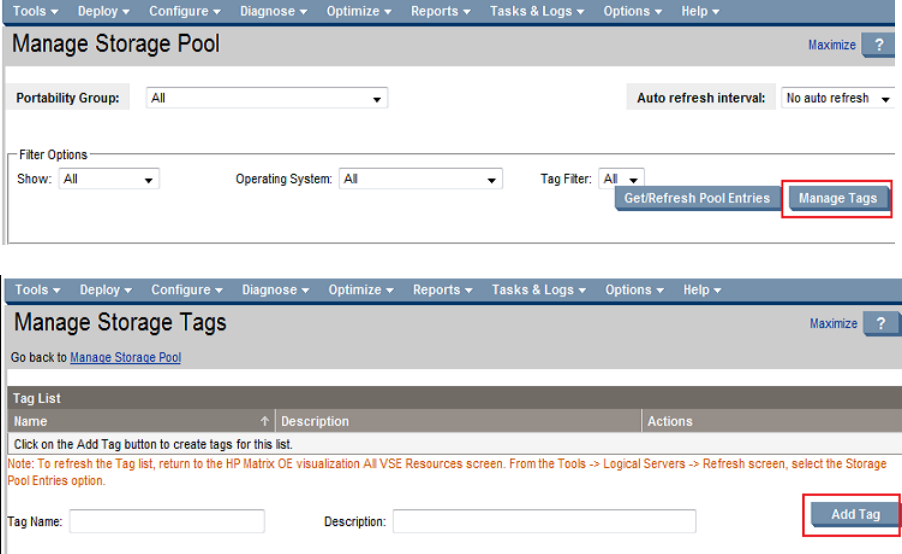

The Manage Storage Pool page appears.
3. Click Manage Tags.
The Manage Storage Tags page appears.
4. Add storage tags and an optional description.
Storage tags are displayed in the Tag List for all Storage Pool Entries. Click Modify next to
the storage pool entry, then check the checkbox next to a tag name to associate the tag with
the storage pool entry.
Manual storage provisioning 131
