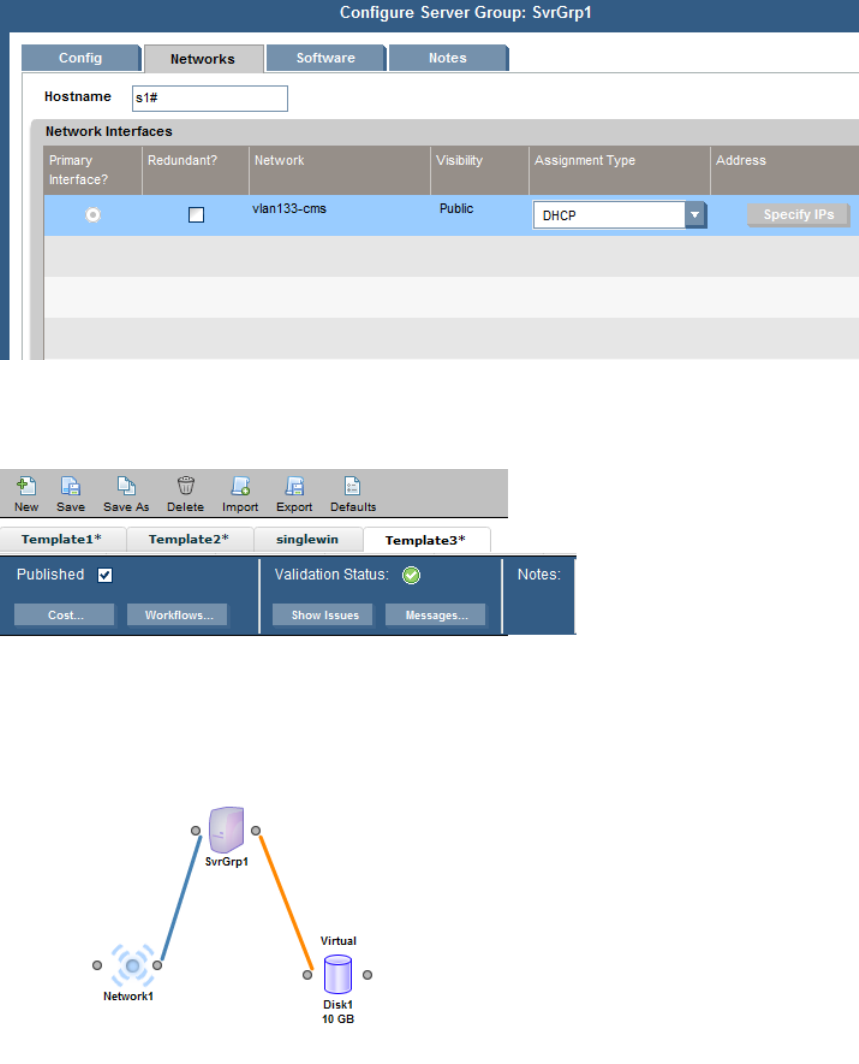

10. After you have completed these steps, note that Validation Status is green. If it is not green,
click Show Issues and resolve those items.
11. Select the Published box and then click Save. This template is now available for deployment
by authorized users.
Creating a service request
The infrastructure orchestration self service portal enables you to create infrastructure services from
published templates.
1. From the CMS desktop, double-click the Self Service Portal icon, or open a browser to
https://<cms-name-or-ip>:51443/hpio/portal/.
Or, from Systems Insight Manager, open the infrastructure orchestration console by selecting
Tools→Infrastructure orchestration.
Creating infrastructure orchestration templates and services 113
