Configure SNMP from the OA CLI:

1. ENABLE SNMP: Enables SNMP Trap support for the Onboard Administrator.

2. ADD SNMP TRAPRECEIVER <ip address> [ "<community name>" ]: Adds a new trap receiver address

to the SNMP configuration. By default the community name/string is set to 'public' or the optional

"<community name>".

A maximum of eight IP addresses can be added to receive SNMP traps.

3. TEST SNMP: Sends a test SNMP trap to all of the configured trap destinations.

To removes the IP address from the list of trap receivers use the OA CLI Command: REMOVE SNMP

TRAPRECEIVER <ip address> [<community>]. You can disable the SNMP using the DISABLE SNMP CLI

Command, but it does not clear the SNMP trap receivers that have been configured.

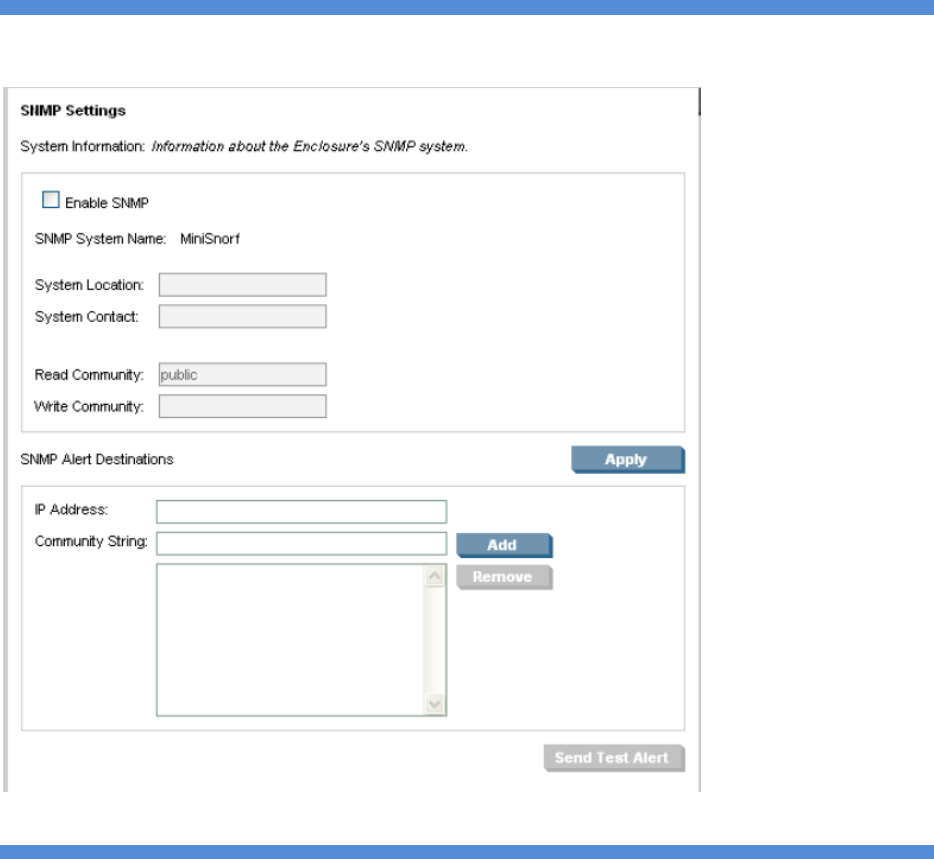

Figure 4: SNMP Settings OA GUI Screen
