Managed Systems Configuration Guide

Chapter 12: HP-UX Server Configuration

2. To list registered CIM providers and their current status to make sure that they are all enabled, run the

following command:

# cimprovider –l –s

3. Run the following command to check OnlineDiag is installed and make sure it is version B.11.11.16xx

or later.

# swlist | grep –i OnlineDiag

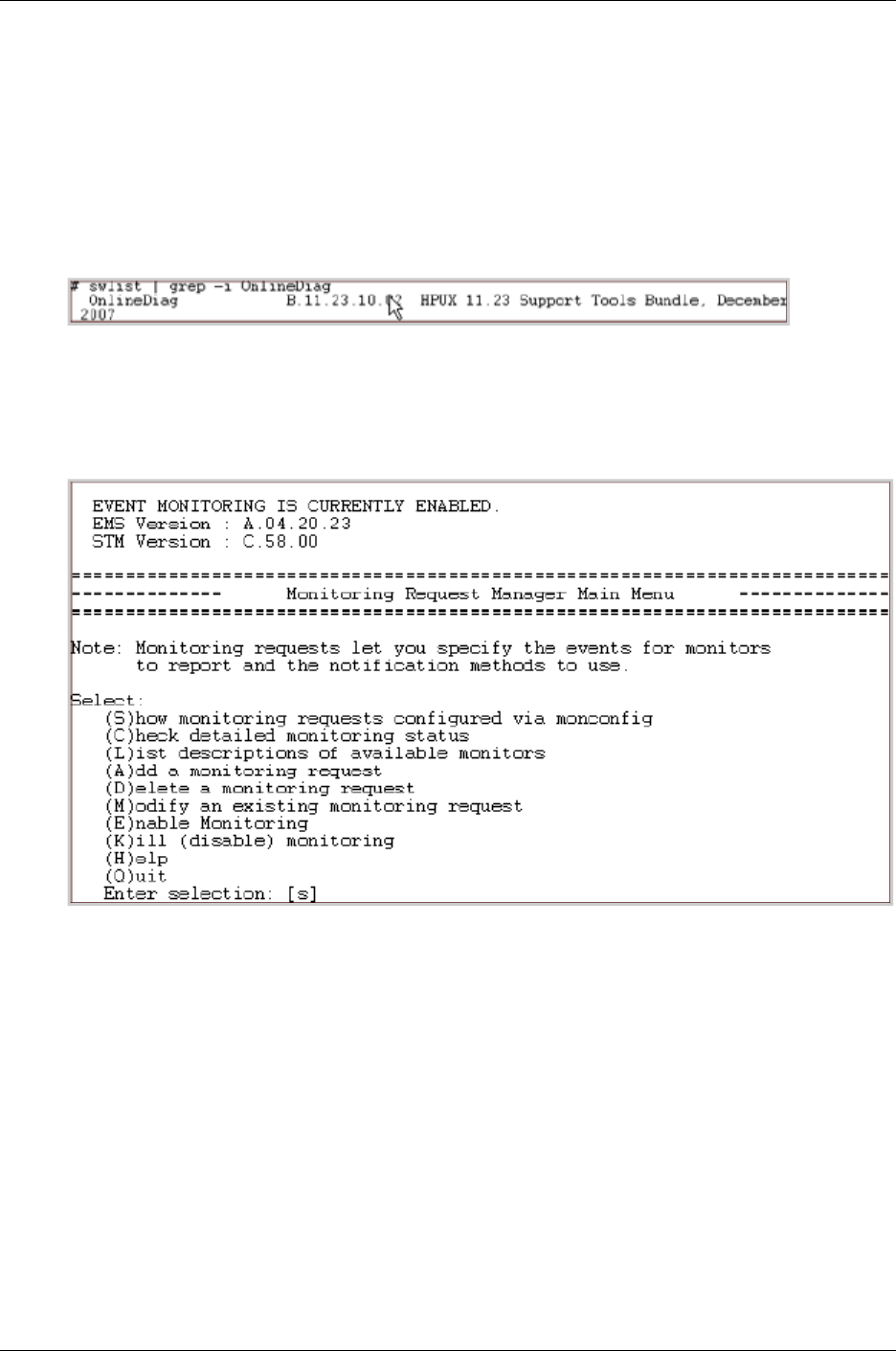

The output should look similar to the following:

4. Run the following command to check that OnlineDiag is reporting that Event Monitoring is Currently

Enabled and that EMS version is A.04.20 or later and the STM is A.49.10 or later:

# /etc/opt/resmon/lbin/monconfig

The output should look similar to the following:

5. Select 'Q’ to exit the EMS Monitoring Request Manager Main Menu.

6. Disable EMS hardware monitors for HP-UX 11i v2 and 11i v3. HP-UX 11i v1 has only one mode,

which means that SFM uses EMS to report the events. You cannot disable EMS in 11i v1.

i. Check if SFM is used for hardware monitoring:

# /opt/sfm/bin/sfmconfig -w –q (not supported with 11i v1)

ii. If EMS is enabled for monitoring, switch to SFM using the command:

# /opt/sfm/bin/sfmconfig –w –s (not supported with 11i v1)

7. Run the following command to determine the version of the optional, but recommended, SMH

component is at least version A.2.2.6.2:

# swlist SysMgmtWeb SysMgmtHomepage

HP Insight Remote Support Advanced (A.05.80)Page 79 of 204
