A.05.80 HP Insight Remote Support Advanced Managed Systems Configuration Guide (June 2013)

Managed Systems Configuration Guide
Chapter 7: ProLiant c-Class BladeSystem Enclosure Configuration

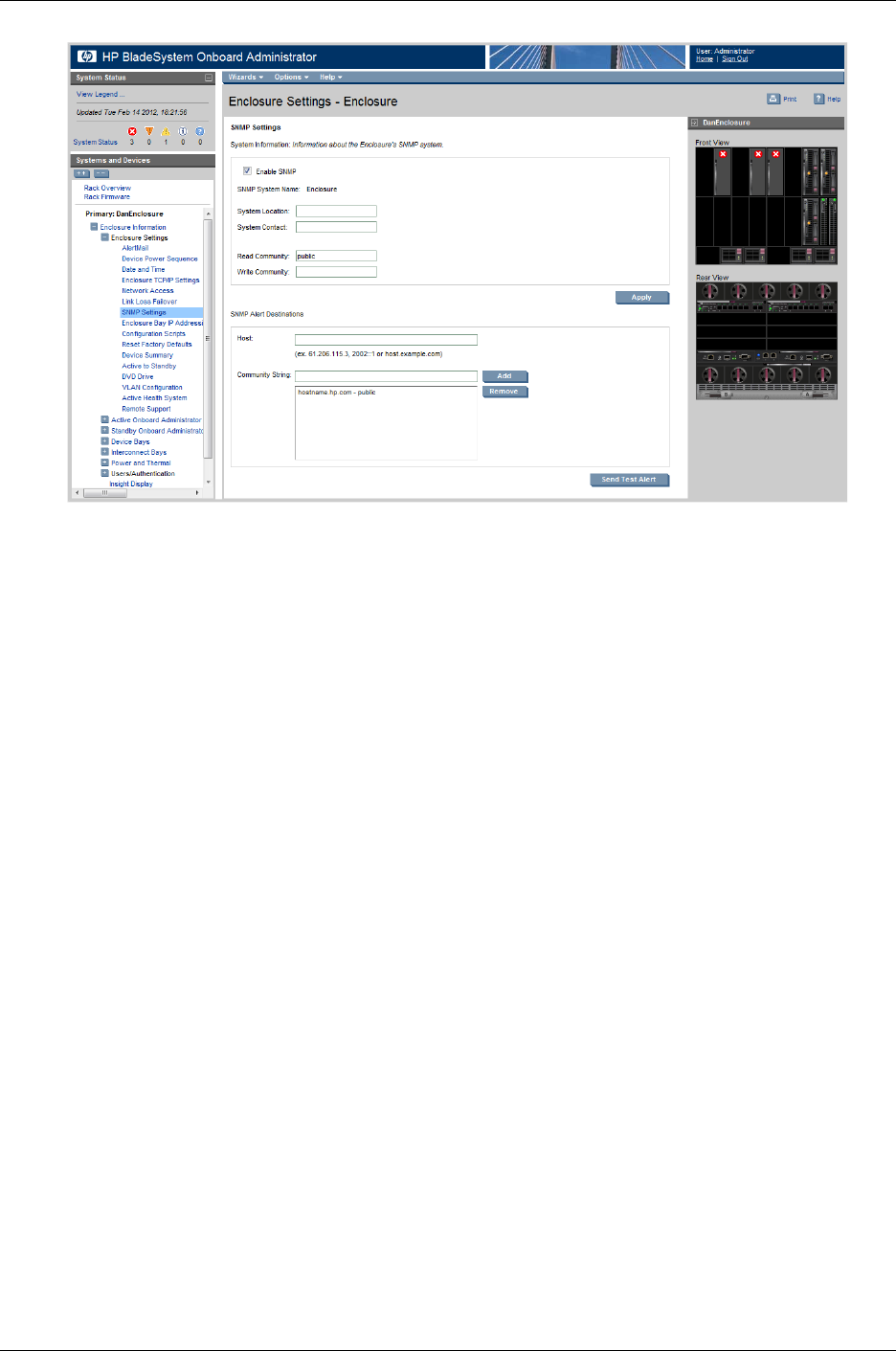

5. In the System Information pane, select the Enable SNMP check box and complete the following:
a. Add system location and contact information.
b. Set Read and Write community strings.
6. Click Apply.
7. In the SNMP Alert Destinations pane, complete the following:
a. In the Host field, enter the IP address of the CMS.
b. In the Community String field, enter the SNMP community string for the CMS.
c. Click Add.
Discover the c-Class BladeSystem Enclosure
1. Log on to HP SIM on the CMS.
2. Discover the c-Class enclosure:
a. Browse to Options → Discovery.
b. Click New to create a discovery task for the c-Class enclosure, and enter the IP addresses of the
c-Class enclosure Onboard Administrator (OA).
c. Click Credentials → SNMP and enter the community string of the c-Class enclosure.
d. Click OK and then Save to exit from the discovery task configuration process.
e. Click Run Now to start discovery.
f. Verify that the discovery process completed without errors. The WS-Man identification process
and the “Resolving DNS names” process step must execute without errors.
3. Select Options → Remote Support Configuration and Services.
HP Insight Remote Support Advanced (A.05.80)Page 50 of 204
