A.05.80 HP Insight Remote Support Advanced Managed Systems Configuration Guide (June 2013)

Managed Systems Configuration Guide
Chapter 2: ProLiant Windows Server Configuration
Reviewing Test Events Sent from Managed Systems
Some managed system types allow you to send a test event, trap, or indication to the CMS. After you
configure your managed system and send a test event, trap, or indication to the CMS, use the following
process to find the test event, trap, or indication on the CMS.
1. Log on to System Event Analyzer (SEA):
a. On the CMS, click Start → Programs → Hewlett-Packard Service Tools → System Event
Analyzer → System Event Analyzer.
Note: If you are logging on to the CMS from another system, open a Web browser and type
the following URL: https://localhost:7906
If localhost does not work, use the Fully Qualified Domain Name or the IP address of the
CMS instead.
b. You will be prompted to enter a Profile User Name for your session; this can be any name you
choose. Enter the name and click Logon.
c. If you are prompted by the browser that the site does not have a signed certificate, click the link
that will let you continue to the web page. This application is hosted on the CMS.

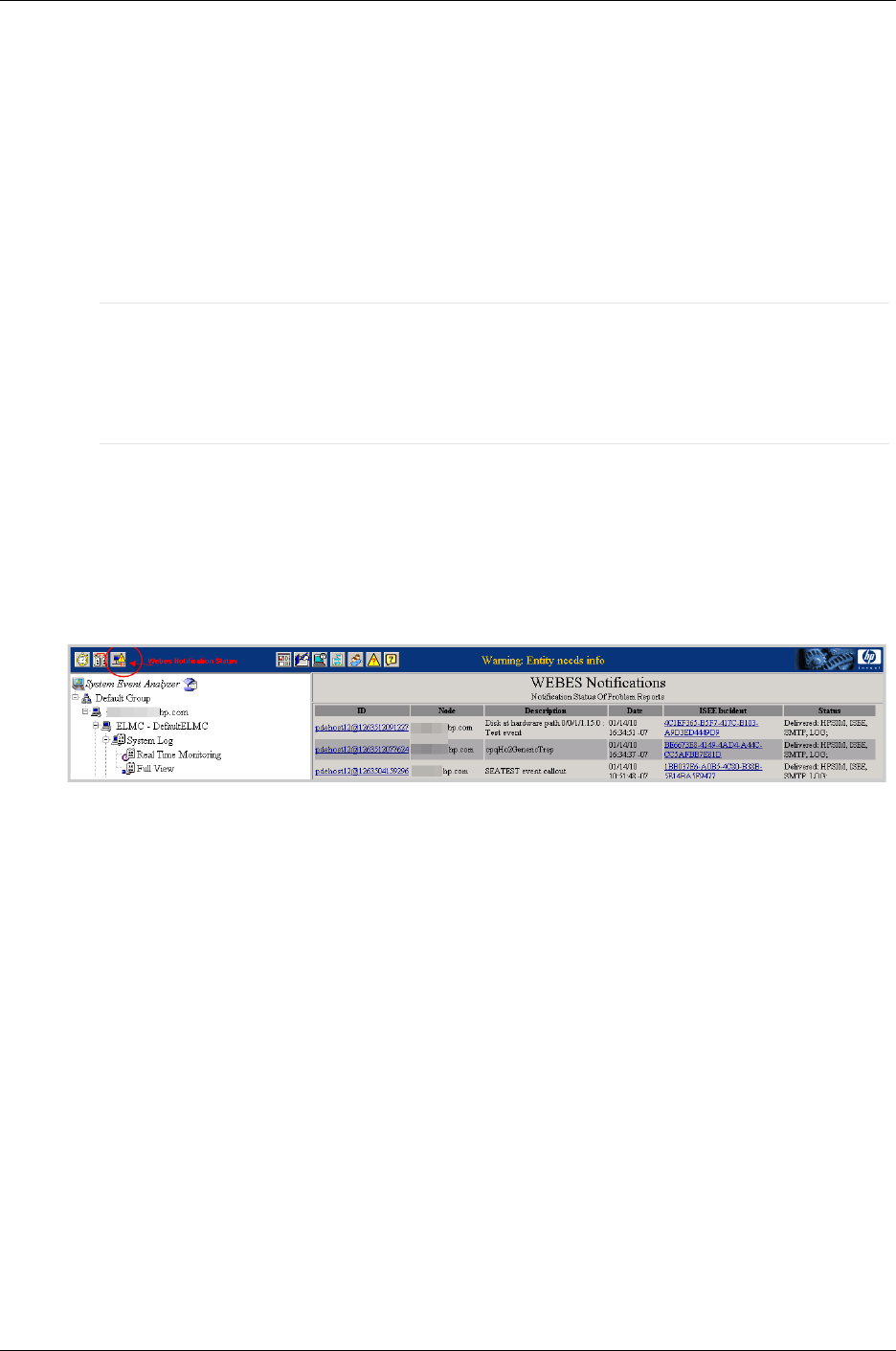

2. In the SEA interface, click on the WEBES Notification Status icon (see the circled icon in the image
below).
3. If your managed system is properly configured and you sent a test event, it will appear on the output
of the SEA.
HP Insight Remote Support Advanced (A.05.80)Page 32 of 204
