A.05.80 HP Insight Remote Support Advanced Managed Systems Configuration Guide (June 2013)

Managed Systems Configuration Guide
Chapter 2: ProLiant Windows Server Configuration

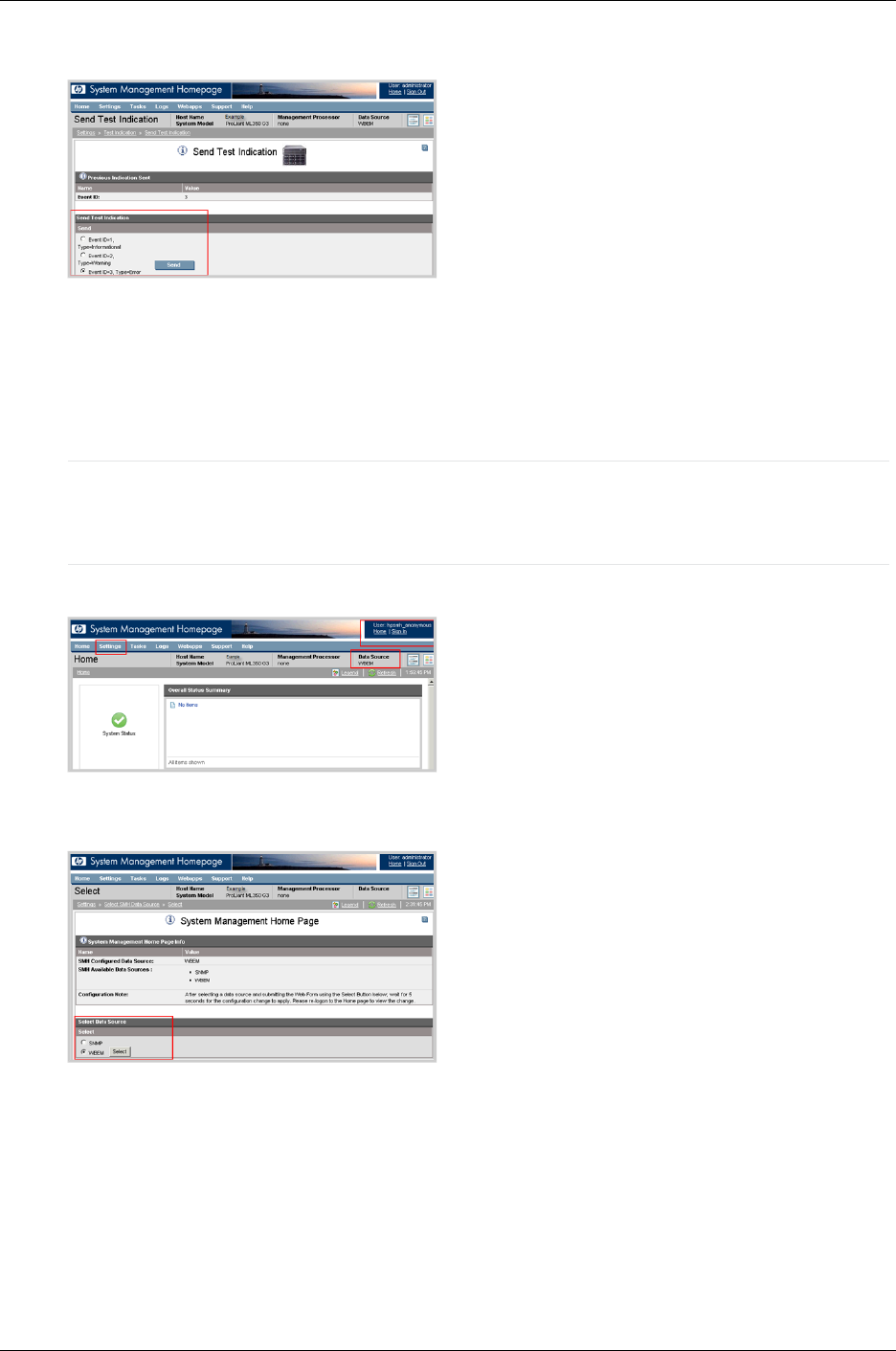

In the Send Test Indication screen, select an Event ID type (any will work) and click Send.
Sending an SNMP Test Trap to the CMS
1. In a Web browser, access the System Management Homepage (SMH) on the managed system:
https://ipaddress:2381.
2. Log on using the administrator user name and password for the managed system.
Note: If you are not prompted for a logon, check the upper right corner of the SMH interface and
click the Sign In link. If you are not logged in as an administrator for the managed system you will
not have all of the relevant configuration options.
3. Click the Settings tab.
4. If you chose to install WBEM with PSP, it will be set as your Data Source. If that is the case, to use
SNMP, click the Select option under the Select SMH Data Source heading to change it to SNMP.
In the Select Data Source menu choose the SNMP option, and then click Select.
5. Once your Data Source is set to SNMP, click the Settings option, and then select the SNMP &
Agent Configuration setting.
6. In the Management Agents Configuration screen, click Send Test Trap.
HP Insight Remote Support Advanced (A.05.80)Page 31 of 204
