Chapter 25: Modular Cooling System Configuration

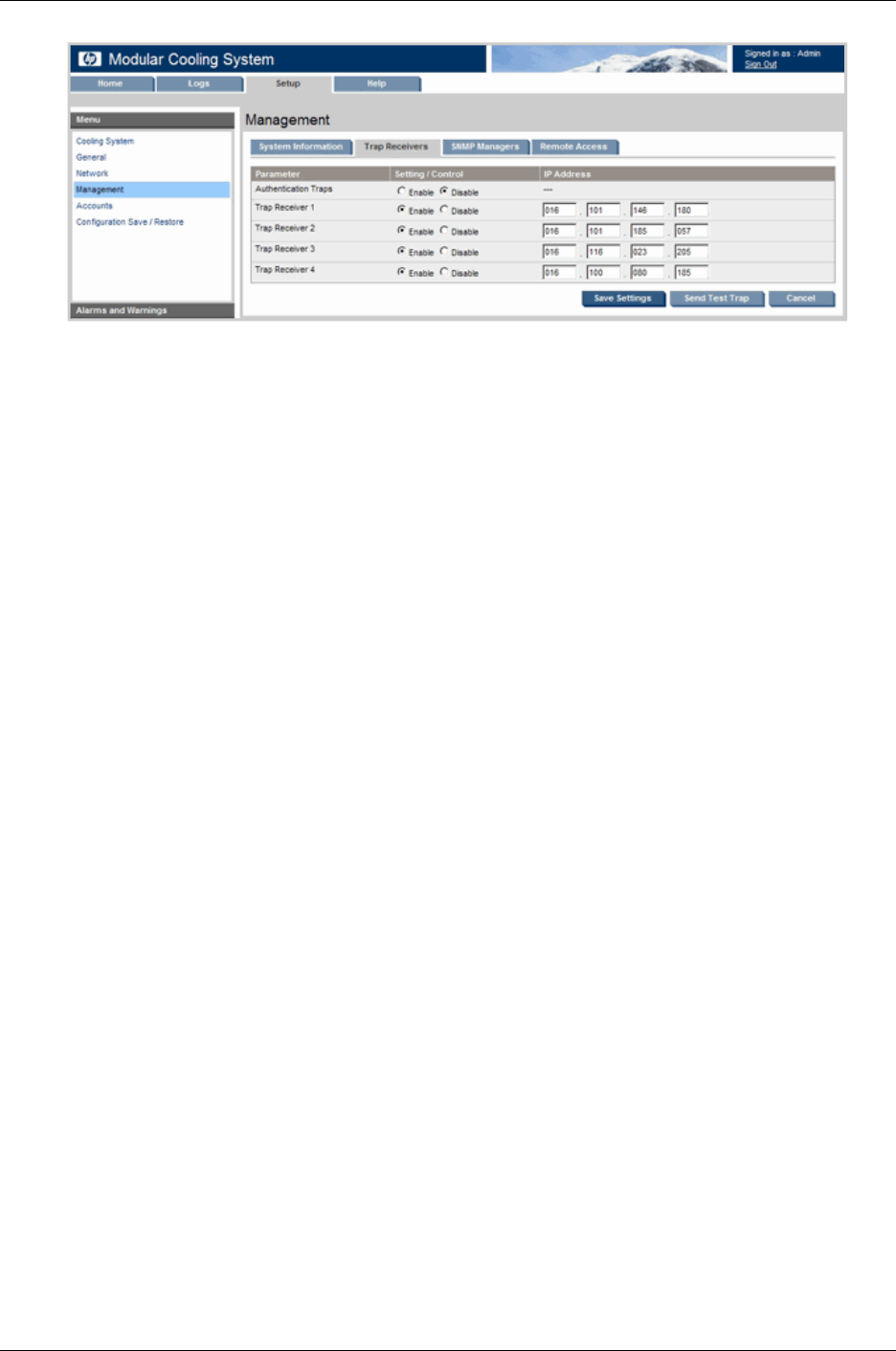

3. Select to enable or disable SNMP authentication traps from the Authentication Traps option.
4. Enable an SNMP trap receiver from the Trap Receivers 1 through 4 options.
5. Enter the IP address for up to four trap recipients in the IP Address fields.
6. Click Save Settings to save the information.
Discover the Management Module
HP SIM automatically detects management modules as part of the device discovery process. If detected,
a hyperlink is included on the HP SIM Links page for the HP Modular Cooling System on which the
management module is installed. The management module should be installed and running before
attempting discovery through HP SIM.
If a link to the HP Modular Cooling System on which the management module is installed does not appear
on the device home page in HP SIM:
1. Locate the additionalwsdisc.props file in the CONFIG directory in the HP SIM install
directory. By default, Systems Insight Manager is installed in the C:\Program
Files\HP\System Insight Manager directory.
2. Create a management module entry in the additionalwsdisc.props file. For more information
on editing the additionalwsdisc.props file, see the additionalwsdisc.txt file located in
the same directory.
Example: The additionalwsdisc.props file with a management module entry
#-------------------------------------------------------
#Additional Web Server Discover Properties
#-------------------------------------------------------
#NOTE: See "AdditionalWsDisc_README.txt" for a description of entries in
this file and how to add or remove additional web server ports for
discovery and identification.
#-------------------------------------------------------
The following are actual web server ports enabled by default.
#To remove them from the discovery process, comment out the line with a '#'
or remove it. You will need to restart the HP SIM service for the changes
to take effect. In addition, you will need to run the Device Identification
task to find any new ports that were defined.
#-------------------------------------------------------
