Chapter 24: UPS Network Module Configuration
#
# ----------------------------------------------------
# The following are actual web server ports enabled by default.
# To remove them from the discovery process, comment out the line with a
'#'
# or remove it. You will need to restart the HP SIM service for
# the changes to take effect. In addition you will need to run the Device
# Identification task to find any new ports that were defined.
# ----------------------------------------------------
411=Director Agent, ,true,false, ,http
3201=Compaq TaskSmart, ,true,false, ,https
8008=Default Home Page, ,true,false, ,http
1311=Server Administrator, ,true,false, ,https
1234=HP UPS Network Module, ,true,false, ,https
The last entry allows HP SIM to detect a UPS Network Module running on port 1234 and using HTTPS
(Secure Socket Layer protocol).
HP SIM services must be restarted to apply the change.
Send a Test Trap
To send a test trap, complete the following steps:

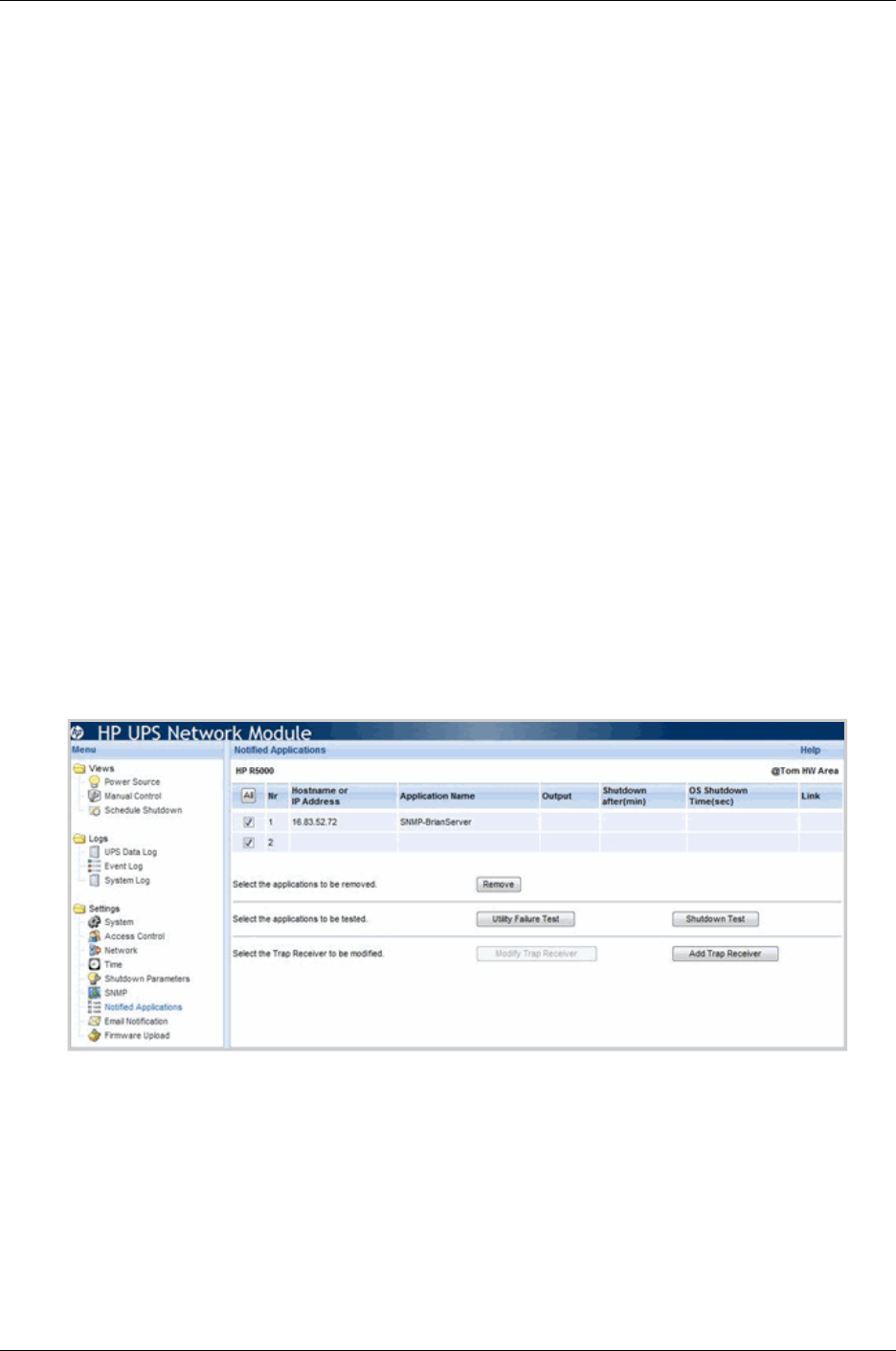

1. Log on to the UPS Network Module web interface.
2. In the left menu, click Notified Applications, then click Add Trap Receiver. Up to three
applications can be configured to receive SNMP traps from the UPS Network Module.
3. Click Utility Failure Test. The UPS Network Module sends a Utility failure trap, and then sends a
Utility restored trap 30 seconds later.
4. Verify that Insight Remote Support Advanced received the test trap.
