Managed Systems Configuration Guide
Chapter 24: UPS Network Module Configuration

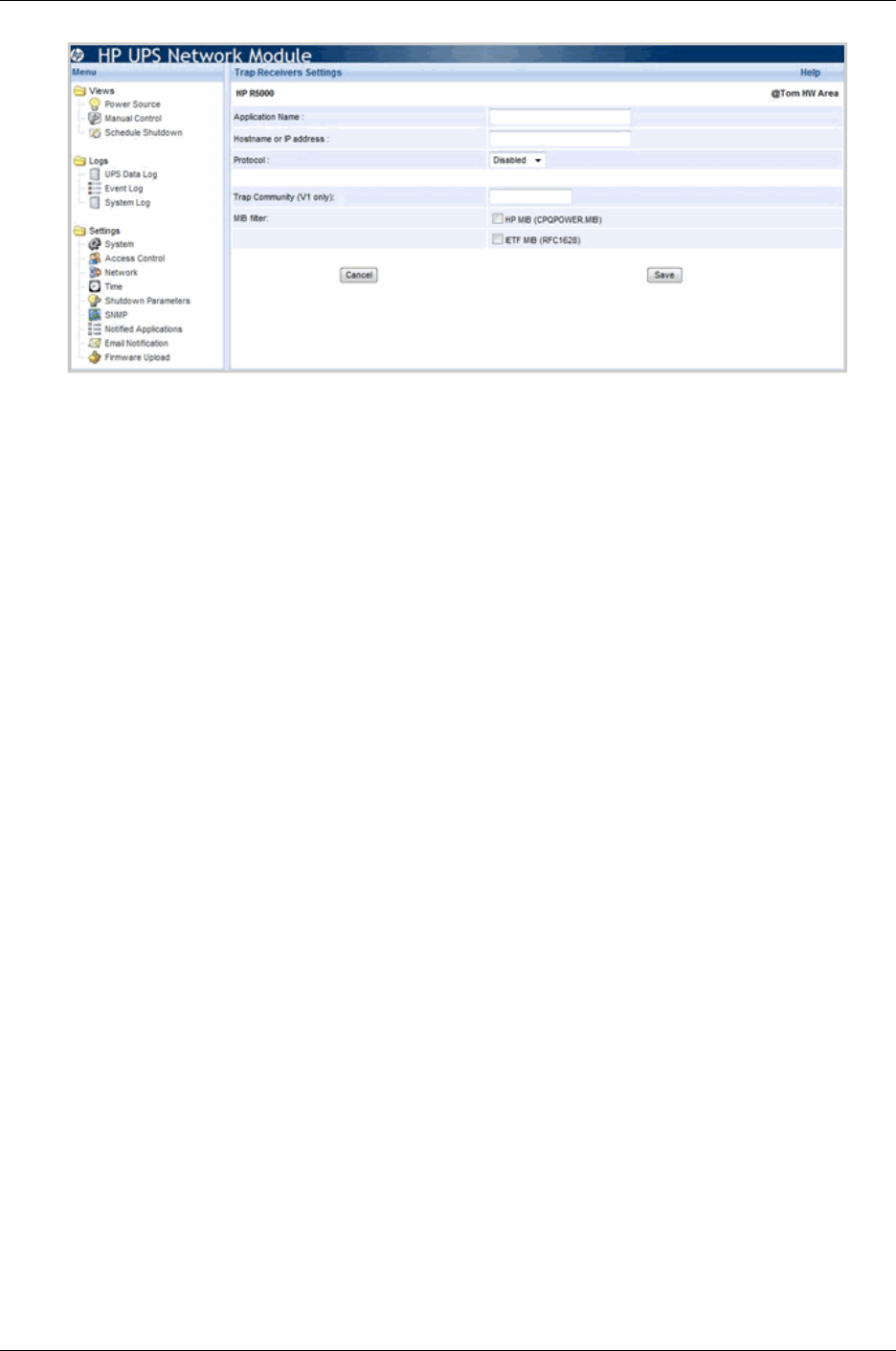

3. Enter the name of the application, such as Insight RS, in the Application Name field. HP
recommends adding “SNMP” or “Trap” to the name to for easy monitoring.
4. Enter the host name or the IP address of the management server on which the application is running
in the Hostname or IP address field.
5. Select the SNMP version from the Protocol drop-down menu.
6. If you selected SNMPv1, enter the community string in the Trap Community field.
7. Select the checkbox for the appropriate MIB:
a. HP MIB (cpqpower.mib)—The HP Power MIB
b. IETF MIB (RFC1628)—A standard UPS MIB
8. Click Save. The application information appears on the Notified Applications screen.
Discover the UPS Network Module
HP SIM automatically detects UPS Network Modules as part of the device discovery process. If
detected, a hyperlink is included on the HP SIM All Systems page for the UPS on which the UPS Network
Module is installed. The UPS Network Module should be installed and running before attempting discovery
through HP SIM.
If the defaults are not used, a new entry can be made to the additionalwsdisc.props file, located in
the CONFIG directory in the HP SIM install directory, to allow HP SIM to correctly discover and identify
the UPS Network Module. For more information on editing the additionalwsdisc.props file, see the
additionalwsdisc.txt file located in the same directory.
Example: additionalwsdisc.props file with UPS Network Module entry
# ----------------------------------------------------
# Additional Web Server Discovery Properties
#
# ----------------------------------------------------
# NOTE: See "additionalWsDisc_README.txt" for a description of entries in
# this file and how to add or remove additional web server ports used for
# discovery and identification.
# ----------------------------------------------------
HP Insight Remote Support Advanced (A.05.80)Page 194 of 204
