Managed Systems Configuration Guide

Chapter 20: Tape Library Configuration

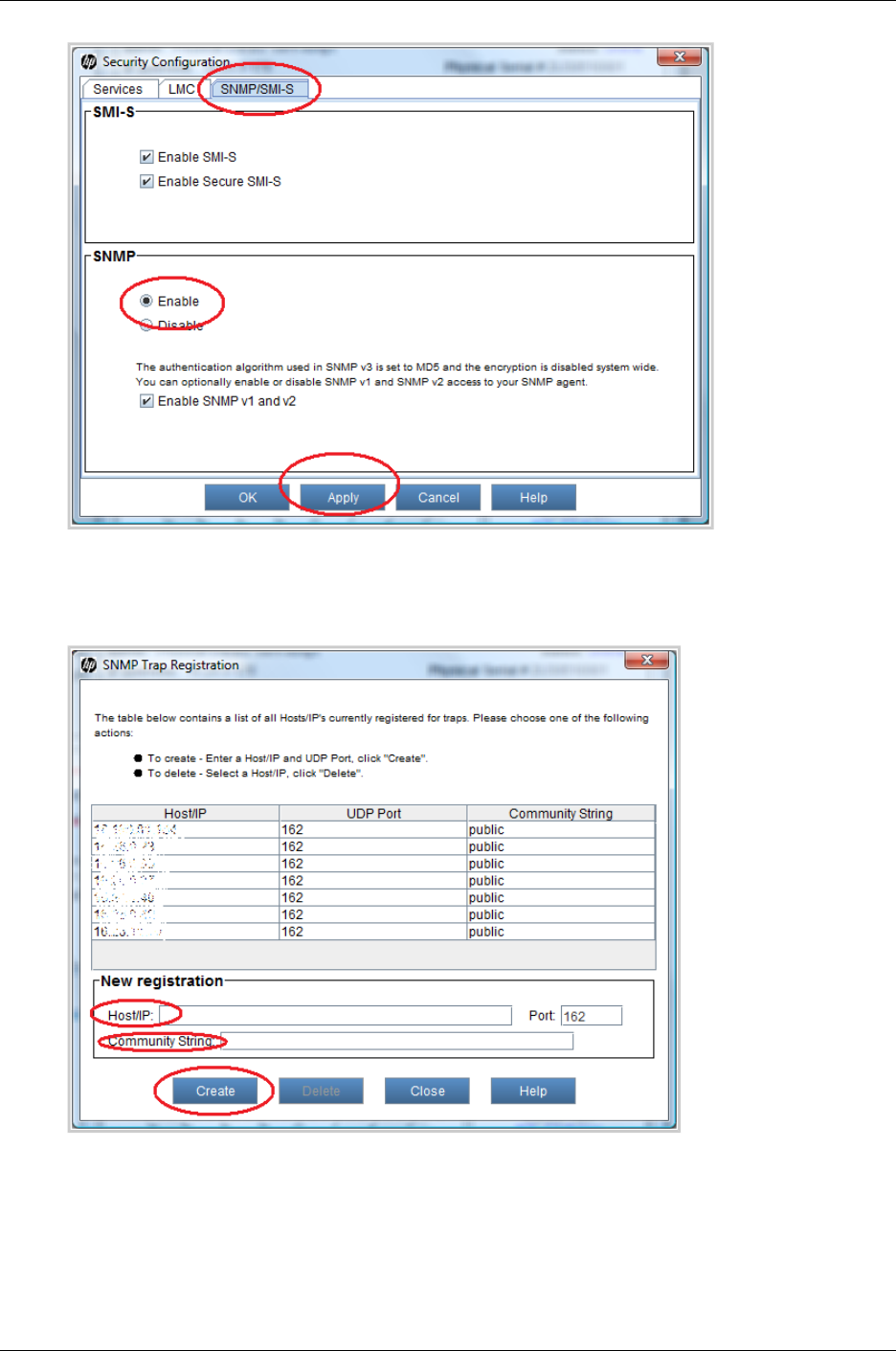

4. In the console, go to Setup → Notifications → SNMP Trap Registration.

5. In the SNMP Trap Registration dialog box, create an SNMPv1 trap, port 162 entry for the IP address

of the CMS. Use public for the community name.

TapeAssure Service Configuration

Standalone LTO-4 and LTO-5 tape drives that are not installed in a tape library can be monitored using a

TapeAssure Service. The service is installed on a host connected to the SAN which has access to the

HP Insight Remote Support Advanced (A.05.80)Page 175 of 204
