Managed Systems Configuration Guide

Chapter 20: Tape Library Configuration

Configuring HP SIM

1. In HP SIM, discover the device.

2. If the device is discovered as unknown, go to Edit System Properties.

3. Edit the model to be D2D.

4. Edit the device type to be TapeLibrary.

5. Edit the device sub-type to be Storage.

6. Save the new system properties.

Configuring SNMPon the D2D

Use one of the following procedures to configure SNMPon your D2D device, depending which D2D

device you have:

l "Configure SNMPon D2D Backup System" below

l "Configure SNMPfor B6200 Backup System" on the next page

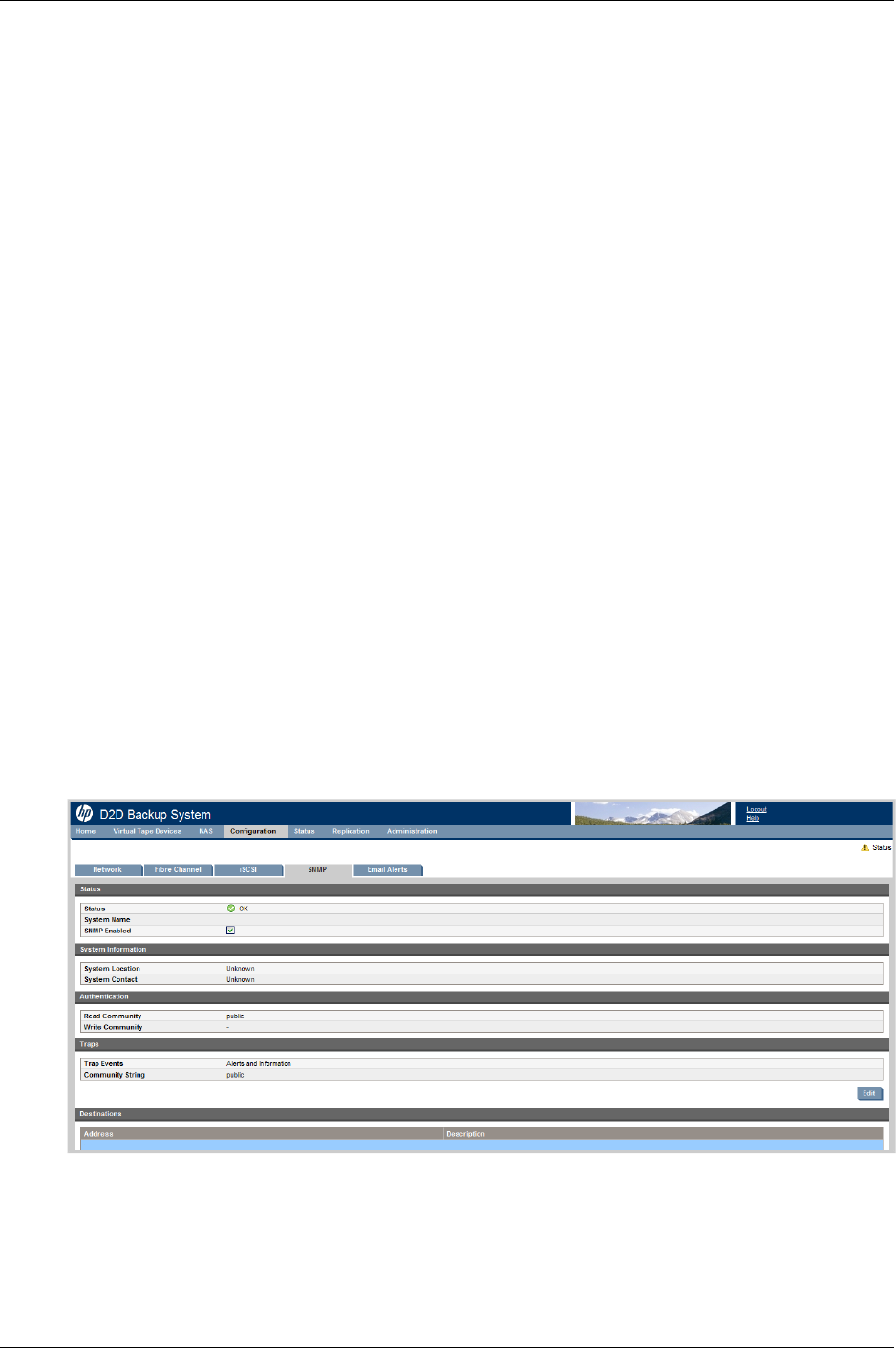

Configure SNMPon D2D Backup System

1. Log on to D2D as "administrator" using https://<D2D IP>.

2. Click the Configuration tab.

3. On the Device Configuration pane, click the SNMP tab.

4. Click Edit, then enable the SNMP agent.

5. Use the WEBES host IP address to add a destination.

HP Insight Remote Support Advanced (A.05.80)Page 173 of 204
