Managed Systems Configuration Guide

Chapter 19: Modular Smart Array Configuration

6. Click Apply to commit your changes.

7. Exit the utility and confirm that your 23xx has been discovered by HP SIM on the CMS.

Configure P2000 G3 Series

The administrator of the P2000 G3 must grant permission to the WBEM user Insight Remote Support

Advanced uses to log on with so that Insight Remote Support Advanced can make needed queries.

In HPSIM, both WBEM and SNMP credentials need to be applied to the P2000 G3.

Complete the following steps to access the Storage Management Utility for the P2000 G3 and configure

SNMP for Insight Remote Support Advanced:

1. Log on to the HP MSA Storage Management Utility.

Note: Consult the MSA Storage Management Utility documentation for basic information about

setting up this tool and managing your credentials.

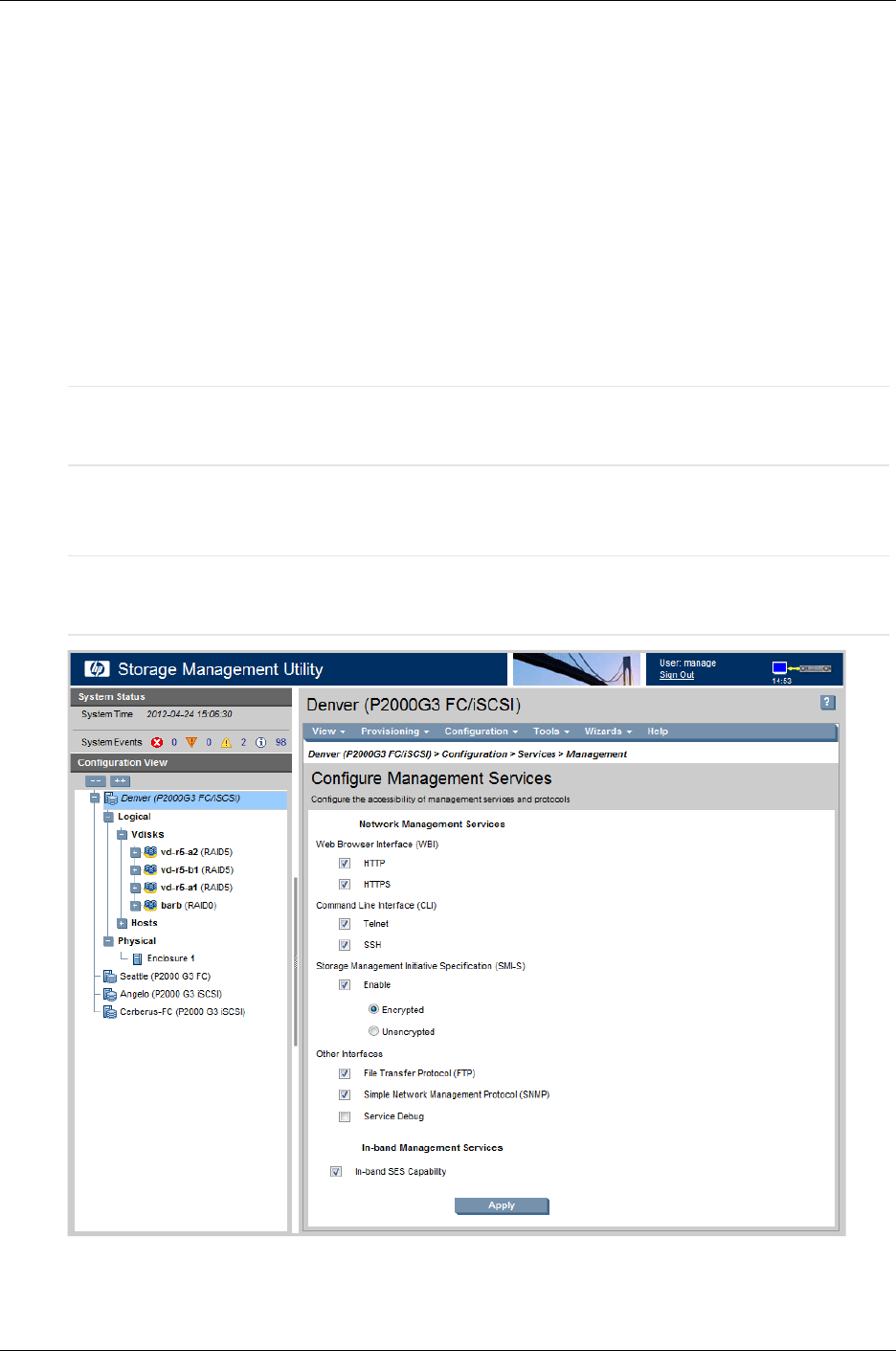

2. Once you have logged into the utility, select Configuration → Services → Management.

3. Make sure that SNMP is selected from the Network Management Services list and click Apply.

Important: SNMP should be active by default. If for any reason it is not active, Insight Remote

Support Advanced will not be supported. It is critical to verify SNMP is active.

HP Insight Remote Support Advanced (A.05.80)Page 167 of 204
