Managed Systems Configuration Guide

Chapter 19: Modular Smart Array Configuration

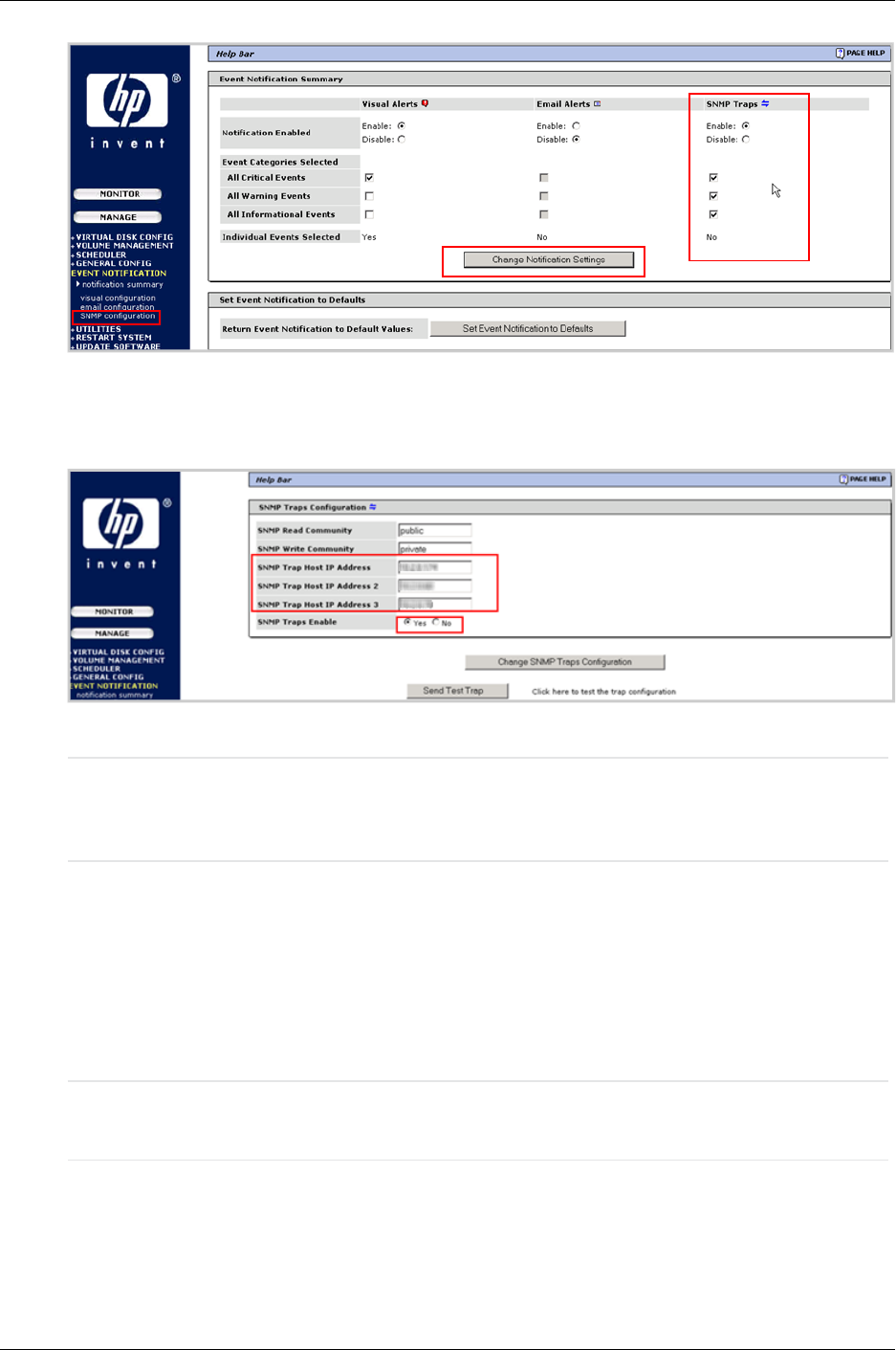

5. Click the SNMP configuration link under the Event Notification heading in the left panel.

6. Modify the SNMP settings to include the CMS as an SNMP Trap Host and make sure the SNMP

Test Traps Enabled radio button is set to Yes.

7. Click Change SNMP Test Traps Configuration to commit your changes.

Note: If your Insight Remote Support Advanced CMS is fully configured, you can send the test

event from this page. If the CMS is not yet configured, you can return to this page later to send

the Test Event

8. Exit the utility and confirm that your 2012/2112 has been discovered by HP SIM on the CMS.

MSA 23xx Series

Complete the following steps to access the Storage Management Utility for the MSA 23xx and configure

SNMP for Insight Remote Support Advanced support:

1. Log on to the HP StorageWorks MSA Storage Management Utility.

Note: Consult the StorageWorks documentation for basic information about setting up this tool

and managing your credentials.

2. Once you have logged into the utility, select Configuration → Services → Management.

3. Make sure that SNMP is selected from the Network Management Services list, and click Apply.

HP Insight Remote Support Advanced (A.05.80)Page 165 of 204
