Chapter 19
Modular Smart Array Configuration
Configuring MSA Managed Systems with Target-
based SNMP Support
Before you can monitor your Modular Smart Array (MSA) managed systems, you must:
l Verify the MSA is supported by checking the Insight Remote Support Advanced Release Notes.
l Verify that SNMP is configured.
About MSA Target-based SNMP Support
The following types of Modular Smart Arrays (MSA) use target-based SNMP for Insight Remote Support
Advanced monitoring:
l 1510i
l 2012 and 2112
l 23xx
Each MSA managed system should have factory-installed SNMP on the device. For target-based support
you need to use a separate interface in a supported Web browser to configure SNMP to support the
preceding system types.
MSA 1510i
Complete the following steps to access the Storage Management Utility for the MSA 1510i and configure
SNMP for Insight Remote Support Advanced support:
1. Log on to the HP StorageWorks MSA Storage Management Utility.
Note: Consult the StorageWorks documentation for basic information about setting up this tool
and managing your credentials.

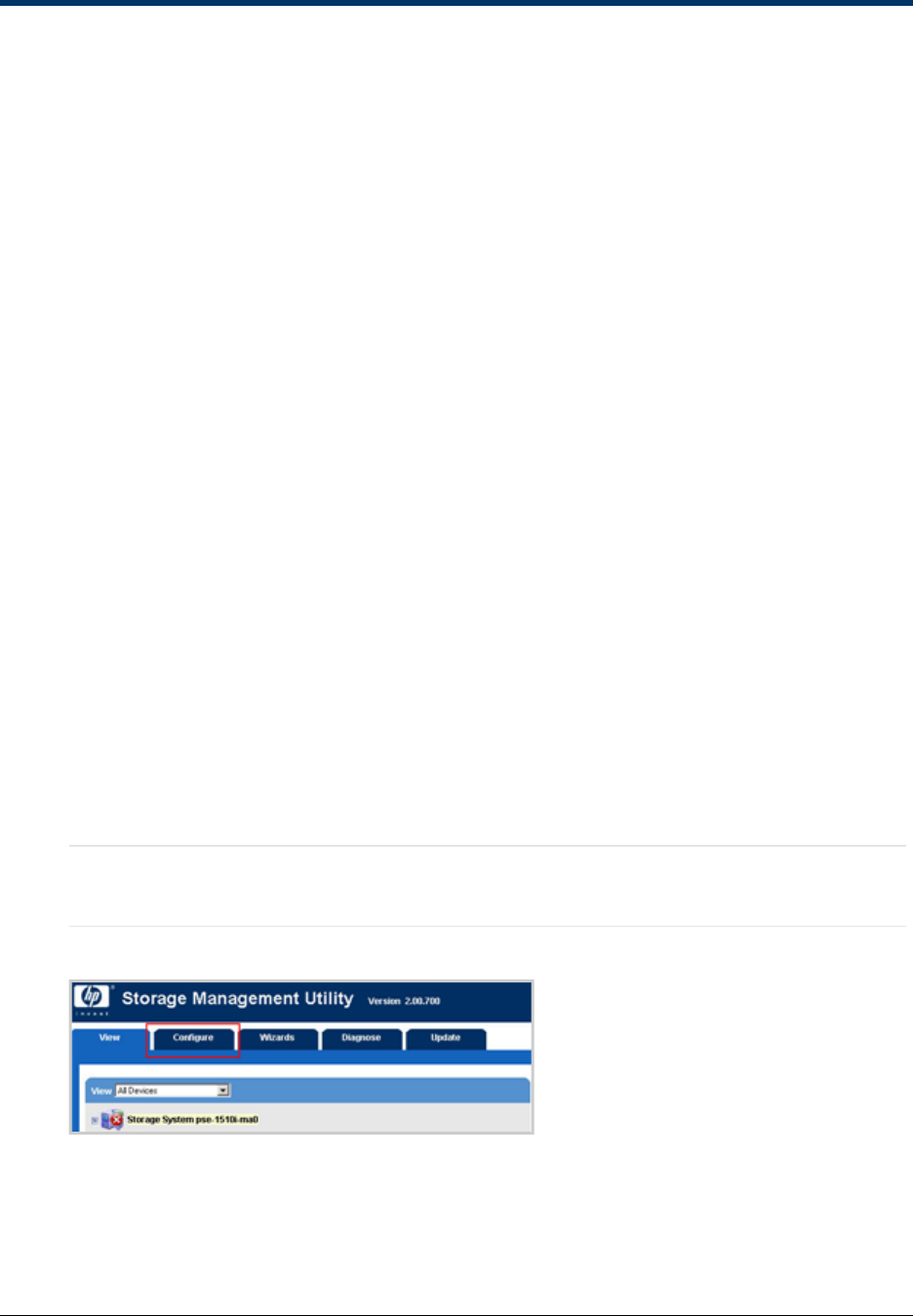

2. Once you have logged into the utility, select the Configure tab.
3. On the Configure tab, expand the Management Port list for the MSA 1510i.
4. Select the SNMP Service link from the list.
HP Insight Remote Support Advanced (A.05.80)Page 162 of 204
