Managed Systems Configuration Guide

Chapter 17: P4000 Storage Systems Migration Procedure

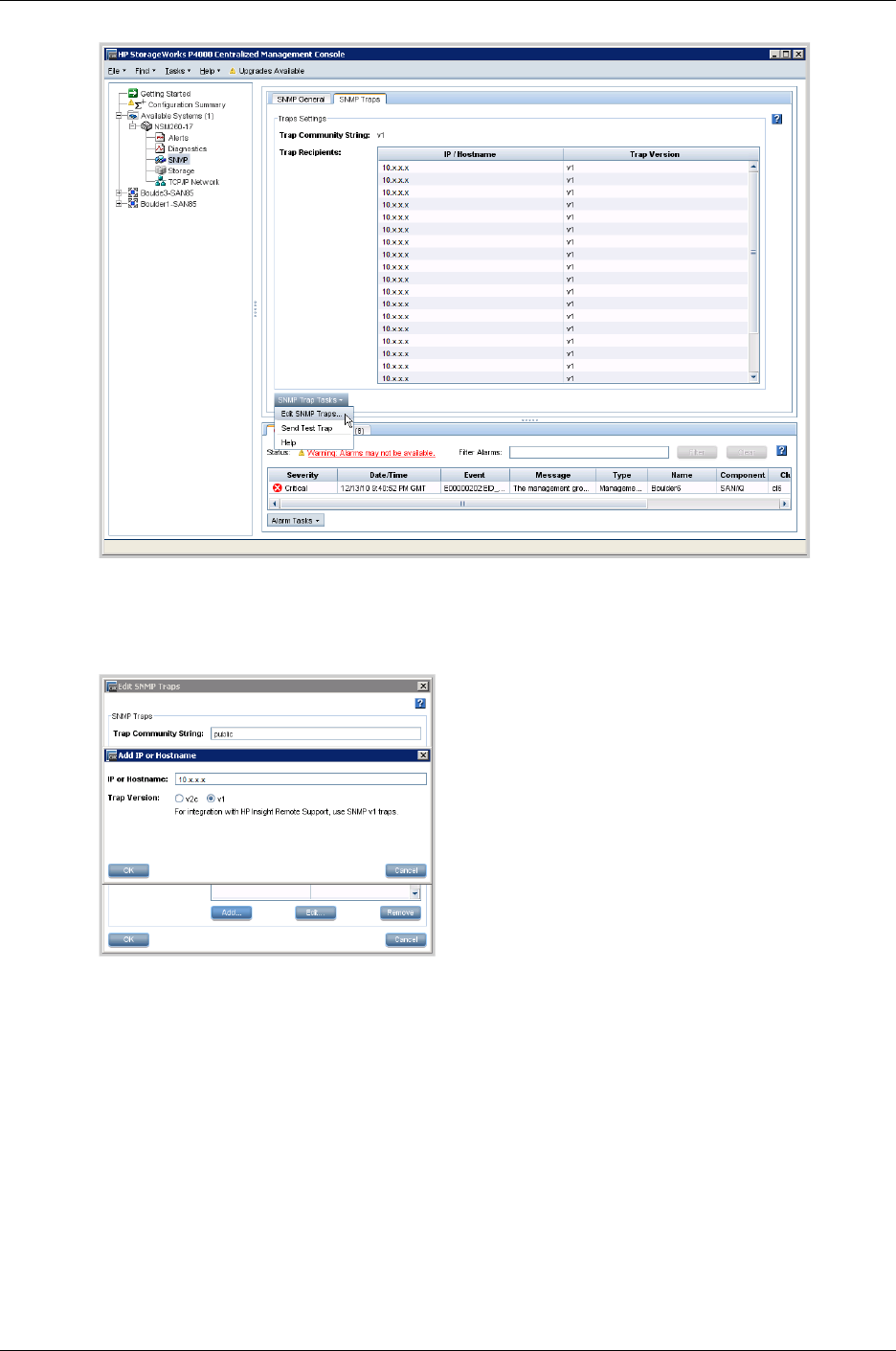

c. In the Edit SNMP Traps dialog, click Add.

d. In the Add IP or Hostname dialog, enter the IP address or hostname into the IP or Hostname

field. Verify that the Trap Version is v1, and click OK.

Repeat steps 3 to 4 for each P4000 Storage System. Alternatively, you could also configure one node

using steps 3 to 4, then use the CMC copy node configuration option to copy the configuration to all

other nodes.

5. Add an additional CMC user with read-only credentials. This is recommended if you don’t want to

have the CMS system administrator to have create/delete control of the storage systems.

HP Insight Remote Support Advanced (A.05.80)Page 147 of 204
