Managed Systems Configuration Guide

Chapter 17: P4000 Storage Systems Migration Procedure

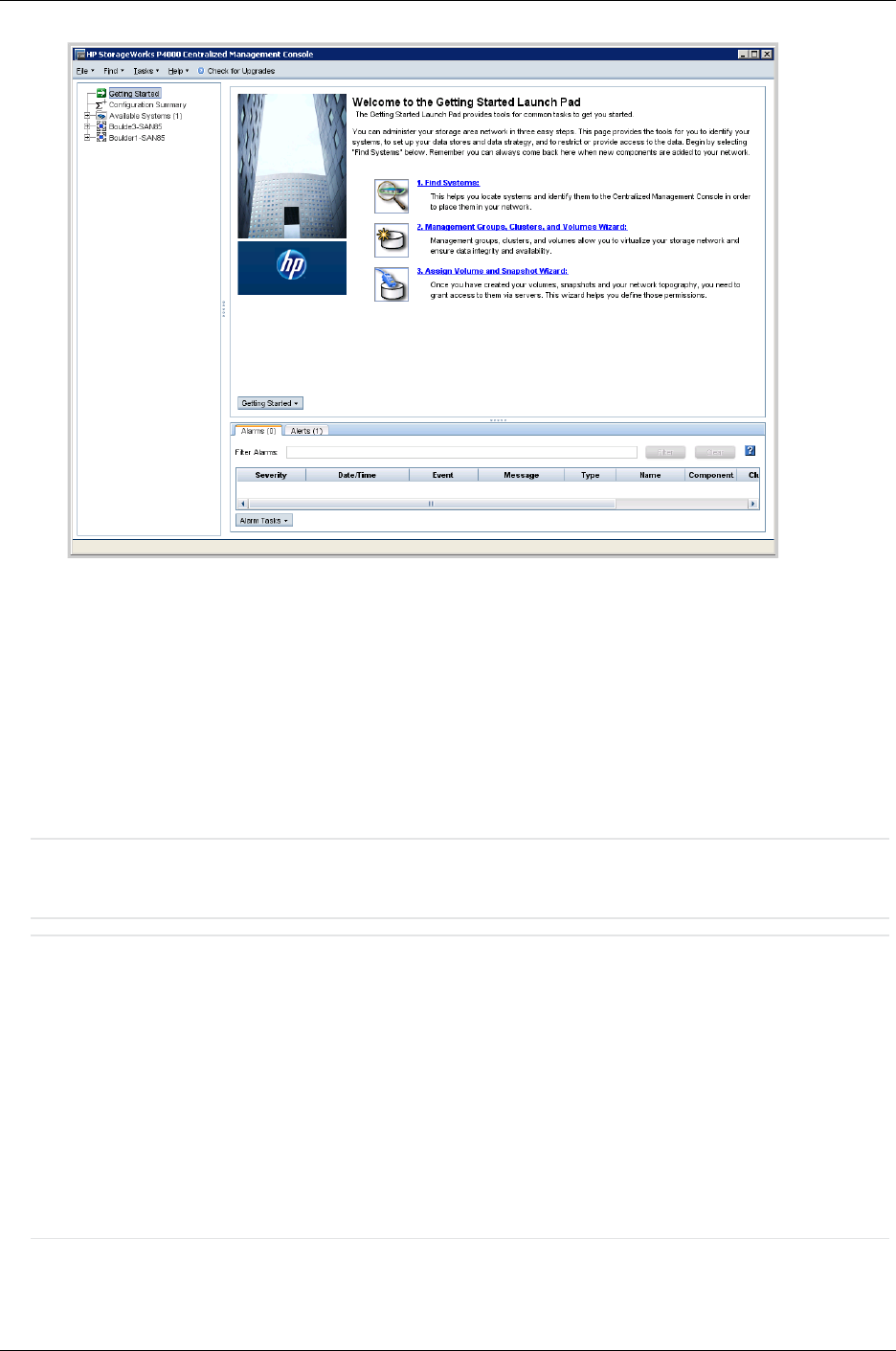

Configuring the P4000 Storage Systems

Upgrading the SAN/iQ Software on the P4000 Storage

Systems

You will use CMC to upgrade to SAN/iQ 8.5, 9.0, 9.5, 10.0, or 10.5 on the P4000 Storage Systems. If your

P4000 Storage Systems already has SAN/iQ 8.5 or higher installed, you do not need to perform this

procedure.

Note: P4000 Storage Systems running SAN/iQ 8.5 require Patch 10076 installed on every P4000

node to work with Insight Remote Support Advanced A.05.70 or A.05.80.

Note: P4800 Storage Systems running SAN/iQ 9.0 require 9.0 Patch Set 05 installed on every

P4000 node to work with Insight Remote Support Advanced A.05.70 or A.05.80. This applies to the

following models:

l BM480A HP StorageWorks P4800 G2 63TB SAS BladeSystem SAN Solution

l BV931A HP P4800 G2 31.5TB SAS SAN Solution for BladeSystem

l BV932A HP P4800 G2 42TB SAS SAN Solution for BladeSystem

See Customer Advisory c03053422 for more information at:

http://h20000.www2.hp.com/bizsupport/TechSupport/Document.jsp?objectID=c03053422

&lang=en&cc=us&taskId=101&prodSeriesId=4118659&prodTypeId=12169.

HP Insight Remote Support Advanced (A.05.80)Page 140 of 204
