A.05.80 HP Insight Remote Support Advanced Managed Systems Configuration Guide (June 2013)

Managed Systems Configuration Guide
Chapter 16: Enterprise Virtual Array Configuration
Note: The first line in the preceding example defines http://localhost:5988 as the default
path for SMI-S. This http port may have been changed if operating on the CMS as described
above in the Port Setting information. This is the http port. The second and third line requires the
credentials for the account set up for HP Storage Group access. When these items are entered
the menu is displayed.

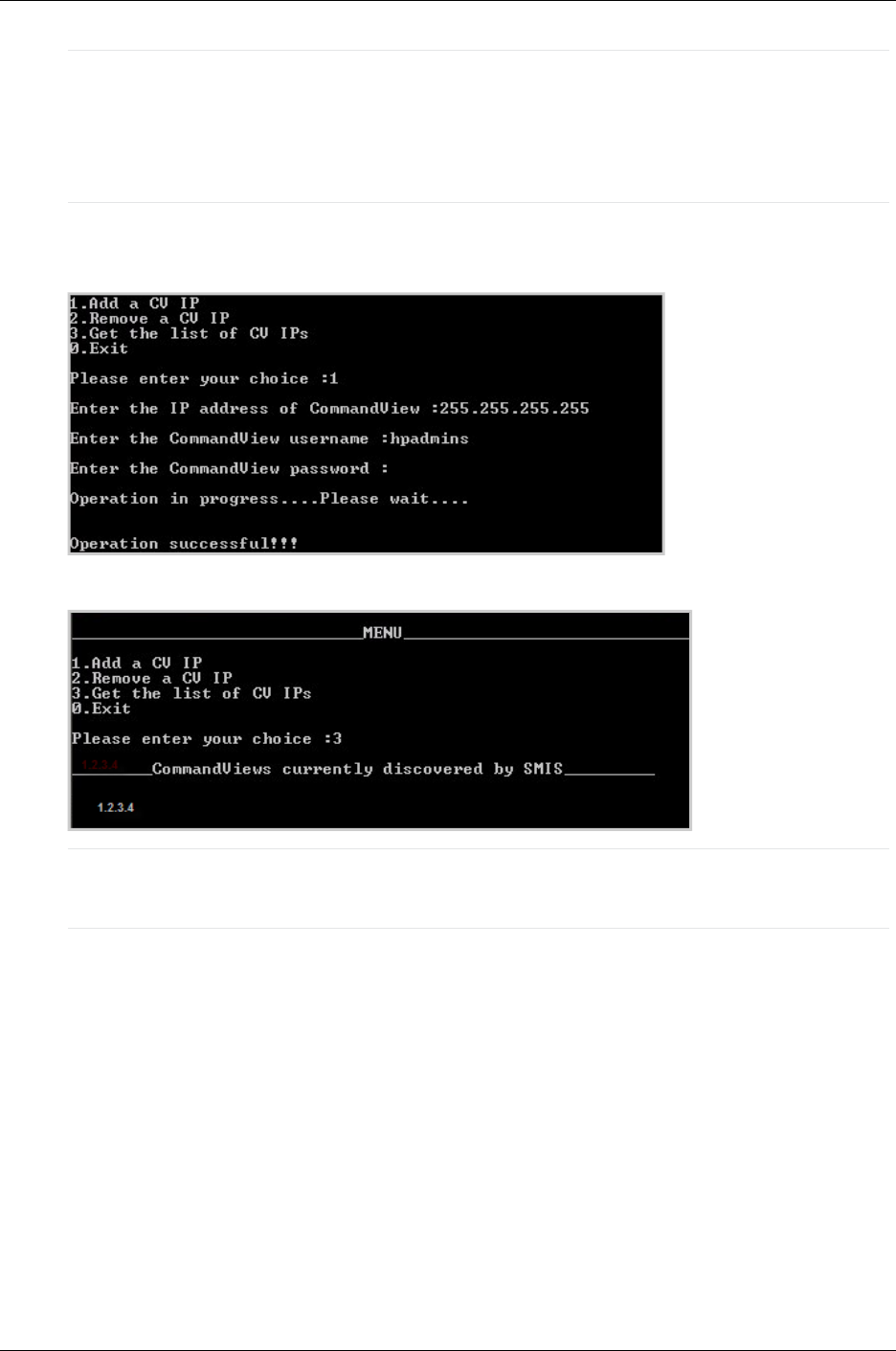

2. Enter 1 to add a CV IP.
3. Enter the IP address and the credentials for Command View EVA on the ABM.
4. Select 3 to view a list of the CV IP addresses.
Note: If Command View EVA is installed on the local host running discoverer you will also see
the IP address for the local host in this list.
5. Enter 0 to exit the discoverer utility.
After SMI-S has a connection to the ABM, HP SIM will discover the EVA4400 or P6000 array managed by
the ABM when it runs discovery against the server hosting the SMI-S service.
WEBES and EVA4400 and P6000
The release of Command View EVA 9.1 for ABM includes ELMC (WCCProxy) running on the ABM. This
provides WEBES with a connection point to the array event data.
WEBES retrieves Managed Entity information from HP SIM when operating on the Insight Remote
Support Advanced CMS. A key point to remember is HP SIM communicates to the array through the
WBEM protocol using the SMI-S provider and WEBES communicates to the array using a network
connection to ELMC (WCCProxy).
