Managed Systems Configuration Guide
Chapter 16: Enterprise Virtual Array Configuration
For HP SIM 5.3.1
a. Go to Options → Protocol Settings → System Protocol Settings.
b. In the Step 1: Select Target Systems page, select an HP SIM collection (that contains the server
running Command View EVA) from the drop-down list to display the systems associated with that
collection.
c. Select your system from the list and click Apply.
d. Select the system again and click Next to display the Step 2: Specify the communications
protocol settings for target systems page.
e. In the WBEM settings section, select the Update values for this protocol check box and edit
the settings as required. SMI-S uses the default Port 5989.

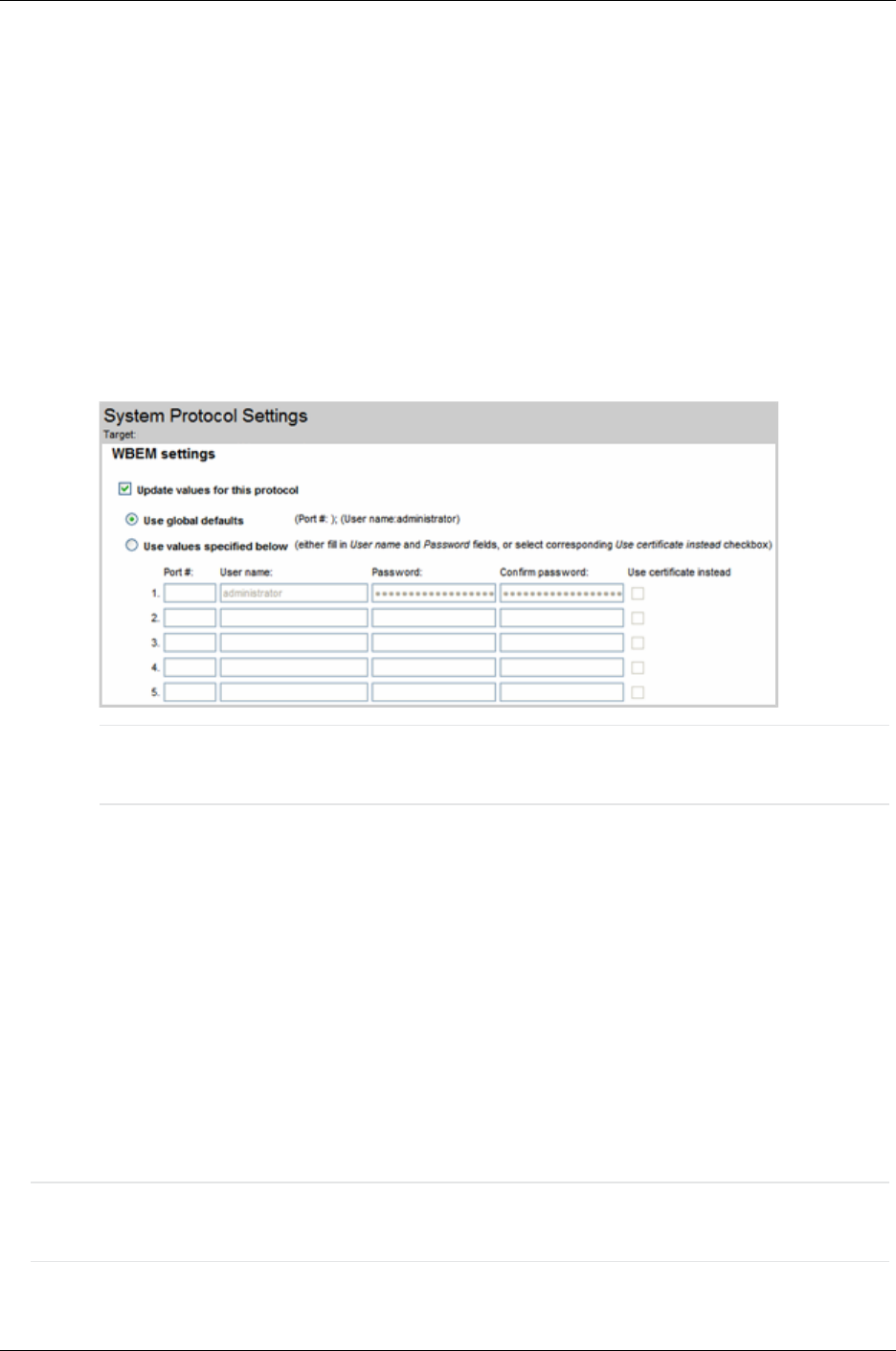

Figure 15.9. System Protocol Settings page
Note: Global protocol settings can also be configured in HP SIM through Options →
Protocol Settings → Global Protocol Settings.
f. Click Run Now to apply your changes.
2. Running another Discovery of the SMS produces the EVA(s) listed in the HP SIM System list.
If the EVA array(s) do not show up there is a communication problem between HP SIM and SMI S,
see "HP SIM did not Discover the EVA" on page 128.
Configure WEBES
Provide the SMS Managed Entity Information in WEBES
WEBES captures all of the necessary Managed Entity information from HP SIM except for the Command
View EVA user credentials. The Managed Entities that are identified as “Command View Server” refer to
the systems that are identified as an SMS.
Note: If the Managed Entities page in WEBES identifies the SMS as anything other than a Command
View EVA server, then verify that ELMC has been installed on the SMS and then restart DESTA as
HP Insight Remote Support Advanced (A.05.80)Page 122 of 204
