Chapter 16: Enterprise Virtual Array Configuration

Note: This screen will only display if a port conflict is detected. That is why the sequence to install HP

SIM before Command View EVA is strongly recommended.

The following figure is an example of the SMI-S installation on an Insight Remote Support Advanced CMS

that already has HP SIM installed with WMI Mapper:

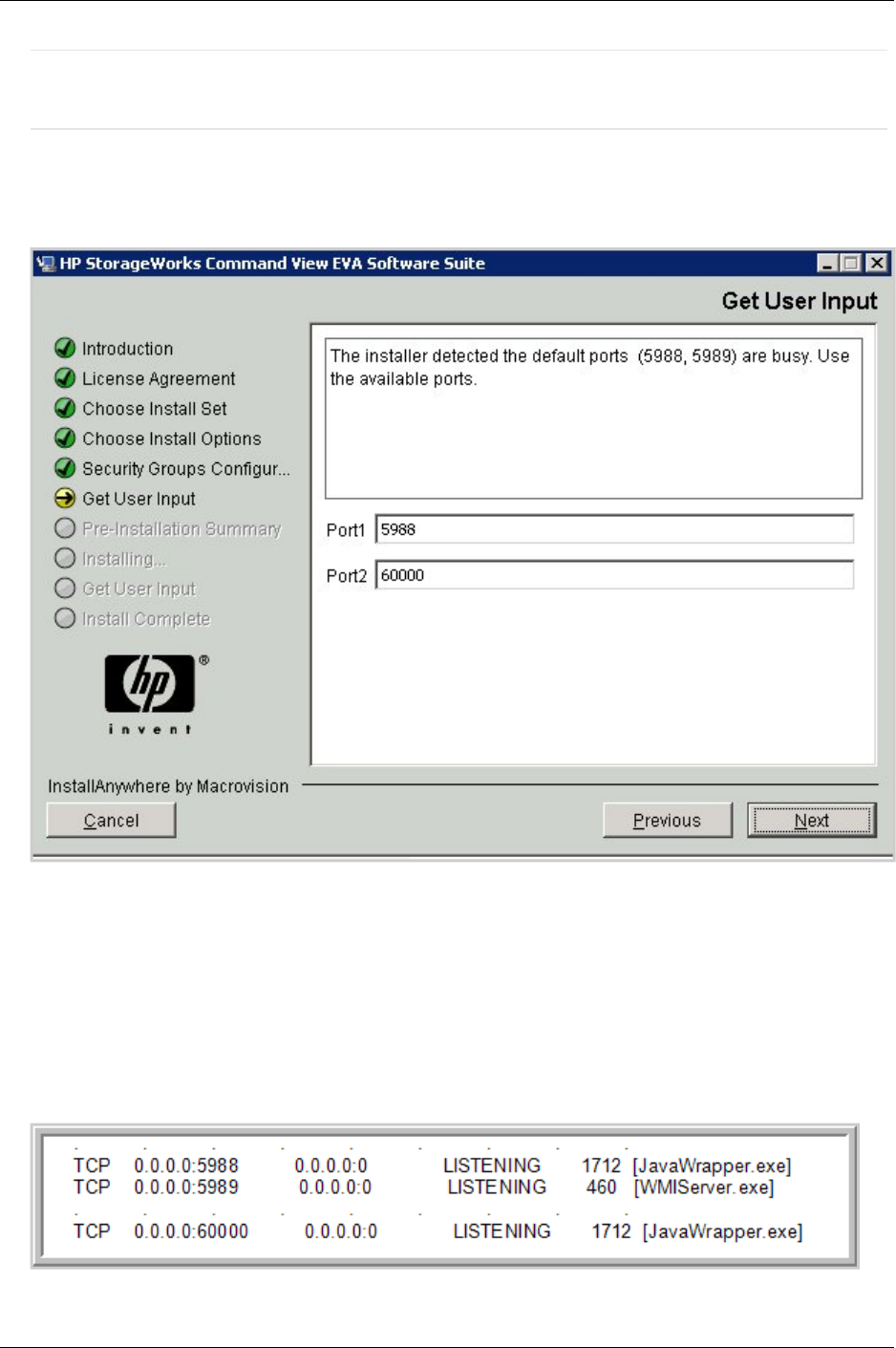

Figure 15.6. Supplemental SMI-S Install Screen

Refer to the HP StorageWorks Command View EVA installation guide for more details on port settings

and for information to configure the Windows account for Command View EVA access. These credentials

are required for HP SIM and WEBES.

Once these ports can be verified by using the netstat command,

C:\ netstat –anb >netstat.txt

You will see the following output:

Figure 15.7. netstat Results

HP Insight Remote Support Advanced (A.05.80)Page 111 of 204
