A.05.80 HP Insight Remote Support Advanced Managed Systems Configuration Guide (June 2013)

Managed Systems Configuration Guide
Chapter 16: Enterprise Virtual Array Configuration
4. Select the option for the CMS instance of WMI Mapper running on the localhost.
5. Click Edit.
6. Enter 5989 in the port number field.
7. Click OK to save your settings.
Restore Defaults to the wbemportlist.xml file
1. In a text editor open the file: C:\Program Files\HP\Systems Insight
Manager\config\identification\wbemportlist.xml
The following is an example (in red text) of how the text would have been previously modified.
Remove that text in your file.
Figure 15.4. Example of wbemportlist file
2. Add the following lines of text to the end of the file.
Note: The example shows the full file, the lines in red are the new lines that you will add to the
file.

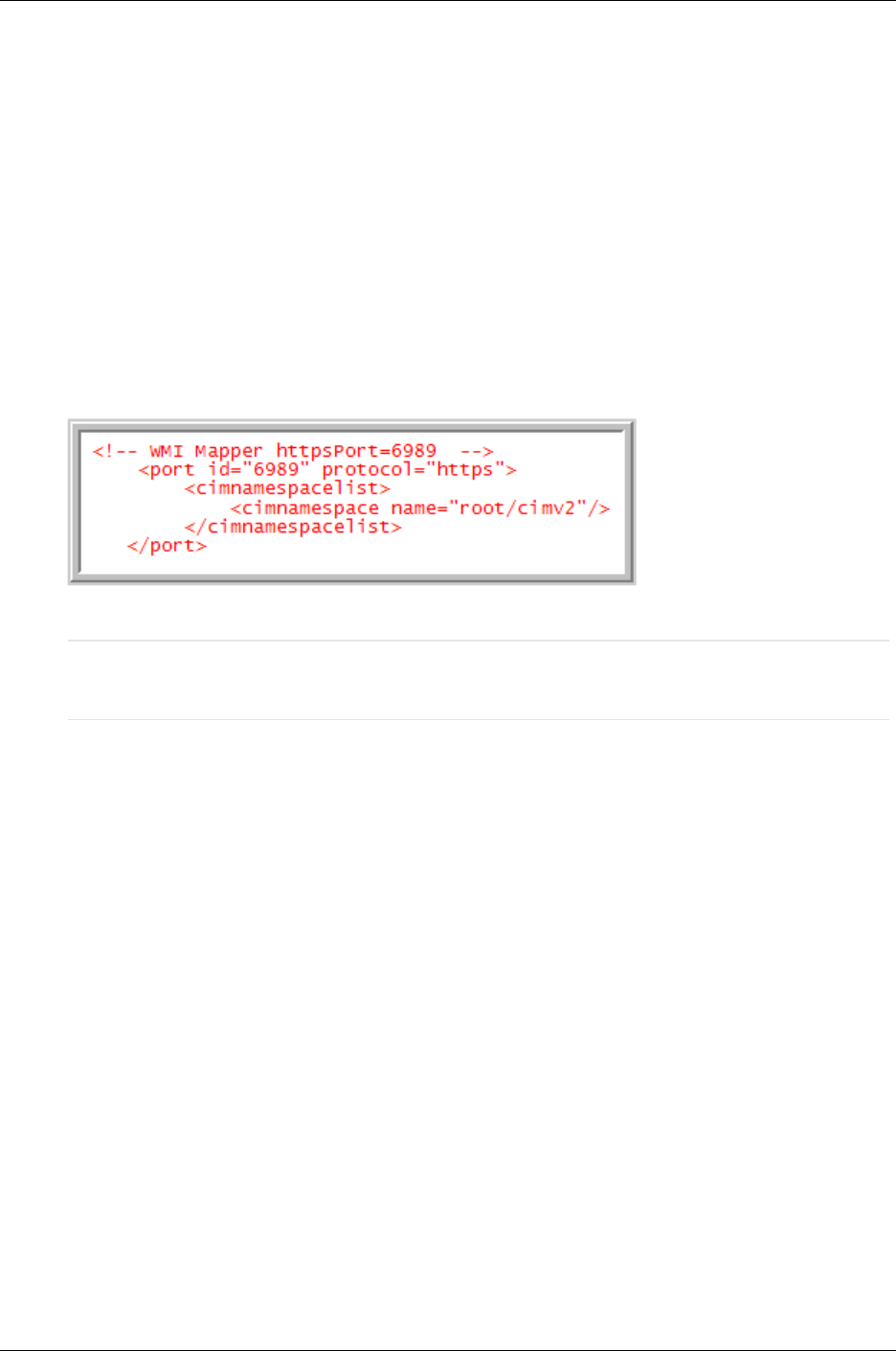

Figure 15.5. XML File Example
HP Insight Remote Support Advanced (A.05.80)Page 109 of 204
