Managed Systems Configuration Guide

Chapter 16: Enterprise Virtual Array Configuration

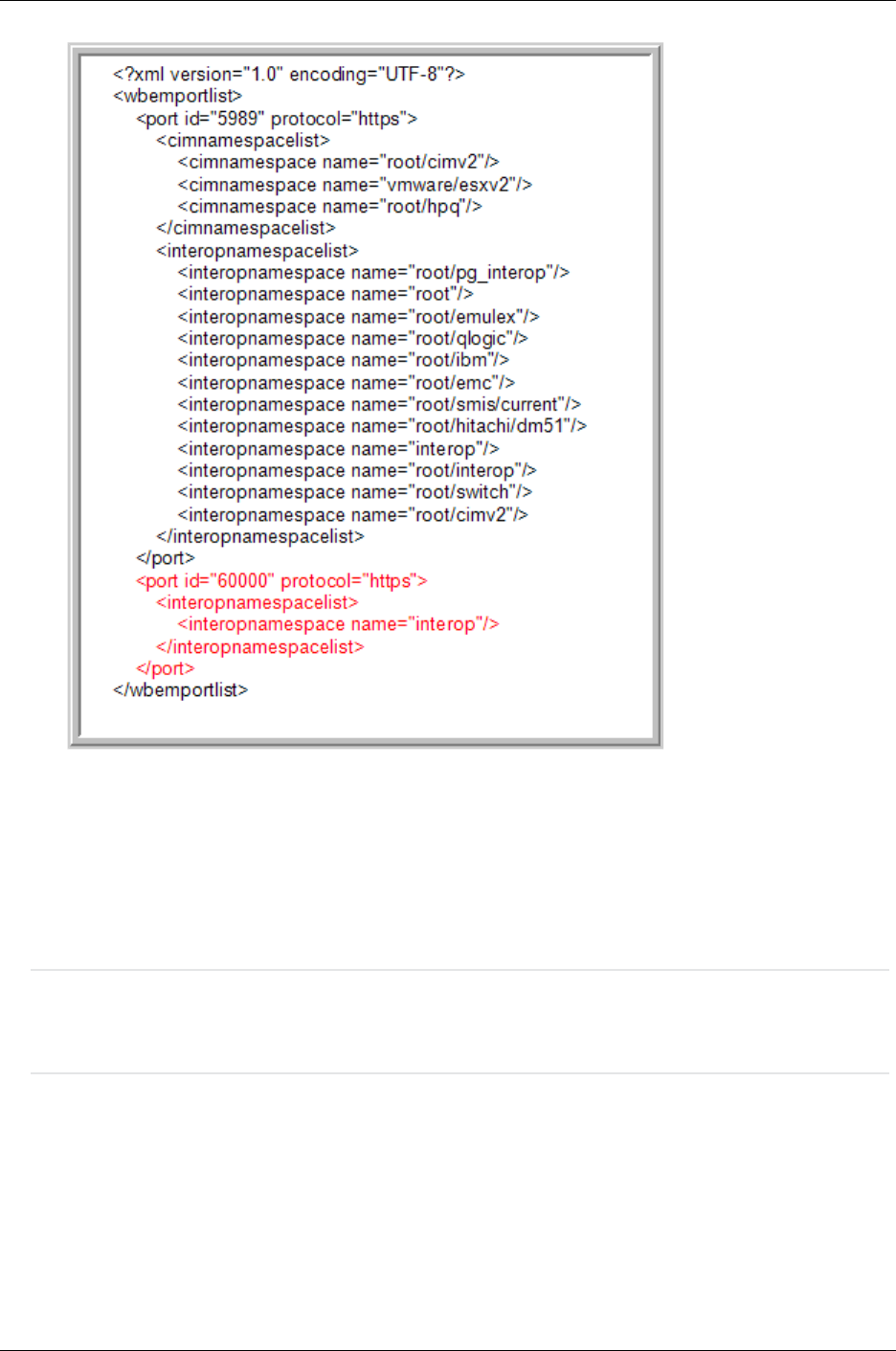

5. Save the wbemportlist.xml file.

6. Restart the HP SIM service.

Right click on the HP Systems Insight Manager service in the Windows Services API, and select

restart from the drop-down list.

Correcting an Existing HP SIM Installation

Important: Do not perform the following steps if this is a first time install of HP SIM. These steps are

only to be used if you have already installed HP SIM and reconfigured the WMI Mapper port to a

setting other than default port 5989.

Older versions of the Insight Remote Support Advanced managed systems documentation for EVA

instructed changing the port settings for WMI Mapper giving an example of using 6989. The following

corrective steps are to be executed only if HP SIM has already been installed and the WMI Mapper port

has been changed to something other than the default of 5989.

Perform the following steps to restore WMI Mapper port to the default port.

HP Insight Remote Support Advanced (A.05.80)Page 107 of 204
