HP Insight Control Server Provisioning 7.3 Update 1 Installation Guide
Table Of Contents
- HP Insight Control Server Provisioning 7.3 Update 1 Installation Guide
- Contents
- 1 Introduction/overview
- 2 Requirements and networking considerations
- 3 Installing your Insight Control server provisioning appliance for the first time
- Overview of the first time set up steps
- Get the software for a first time install
- Install Insight Control server provisioning on VMware vSphere/ESXi hypervisor
- Install Insight Control server provisioning on Microsoft Hyper-V hypervisor
- Log in to the appliance and configure appliance networking
- Accessing your appliance from a browser for the first time
- Next steps
- 4 Updating from version 7.2.2 to 7.3.1
- 5 DHCP server setup
- 6 Setting up the Media Server
- Introduction to the Media Server
- Introduction to the Insight Control server provisioning Media Server setup utility
- Requirements for setting up your Media Server
- Procedure for using the Insight Control server provisioning Media Server setup utility
- Changes made to your web server by Insight Control server provisioning Media Server setup utility
- 7 Generating and uploading WinPE to the appliance
- 8 Recommended actions after initial setup
- 9 Support and other resources
- 10 Documentation feedback
- A Updating from version 7.2 or 7.2.1 to 7.2.2
- Best practices for a successful update to 7.2.2
- Get the 7.2.2 update software and prepare it for use
- Prerequisites for update from 7.2/7.2.1 to 7.2.2
- Instructions for updating from 7.2 or 7.2.1 to 7.2.2
- What you need to do after installing the 7.2.2 update
- Changing from single NIC to multi-NIC (optional)
- Instructions for recovering from a failed 7.2.2 update
- REST API call to upload the 7.2.2 update file
- Glossary
- Index
Procedure for using the Insight Control server provisioning Media Server
setup utility
Follow these procedures to use the Insight Control server provisioning Media Server setup utility:
1. Make sure you have met the requirements specified in “Requirements for setting up your Media
Server” (page 42)
2. Download the Insight Control server provisioning Media Server setup utility from the
Settings→Edit Media Server screen by clicking Download Insight Control server provisioning
Media Server setup utility. The Media Server setup utility is also available in the product ZIP
file your appliance was delivered in and on the media.
3. Save the Insight Control server provisioning Media Server setup utility executable to a local
folder on the Windows Media Server machine.
4. Set the environment variable TEMP to where you would like the Insight Control server
provisioning Media Server setup utility log file, serverdeployment.log, to be written.
5. As administrator, launch the icsp-mediaserver-setup.exe file from the utility Welcome
as shown below.
Figure 11 Insight Control server provisioning Media Server setup utility Welcome

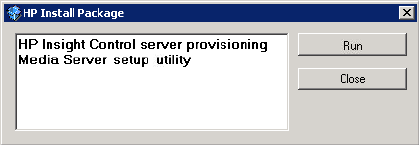

6. From the HP Install Package dialog, select Run.
7. The Insight Control server provisioning Media Server setup utility will self-extract to a temporary
folder and then display the Prerequisites screen. Select Continue once you've made sure all
the prerequisites are met.
8. From the Browse for Folder dialog, select the top level folder for the Media Server and then
select OK. This is where the OS distributions and SPPs will be stored. If you previously ran the
Insight Control server provisioning Media Server setup utility, your previous choice will be
here by default.
9. From the Select Components to Install screen shown below, select the distributions you wish
to install on your Media Server, and then select Install. The OS distributions and HP SPPs listed
are those supported by the version of the Insight Control server provisioning Media Server
setup utility you are running. Distributions not already installed are selected by default.
Procedure for using the Insight Control server provisioning Media Server setup utility 43
