HP Insight Control Server Provisioning 7.3 Update 1 Installation Guide
Table Of Contents
- HP Insight Control Server Provisioning 7.3 Update 1 Installation Guide
- Contents
- 1 Introduction/overview
- 2 Requirements and networking considerations
- 3 Installing your Insight Control server provisioning appliance for the first time
- Overview of the first time set up steps
- Get the software for a first time install
- Install Insight Control server provisioning on VMware vSphere/ESXi hypervisor
- Install Insight Control server provisioning on Microsoft Hyper-V hypervisor
- Log in to the appliance and configure appliance networking
- Accessing your appliance from a browser for the first time
- Next steps
- 4 Updating from version 7.2.2 to 7.3.1
- 5 DHCP server setup
- 6 Setting up the Media Server
- Introduction to the Media Server
- Introduction to the Insight Control server provisioning Media Server setup utility
- Requirements for setting up your Media Server
- Procedure for using the Insight Control server provisioning Media Server setup utility
- Changes made to your web server by Insight Control server provisioning Media Server setup utility
- 7 Generating and uploading WinPE to the appliance
- 8 Recommended actions after initial setup
- 9 Support and other resources
- 10 Documentation feedback
- A Updating from version 7.2 or 7.2.1 to 7.2.2
- Best practices for a successful update to 7.2.2
- Get the 7.2.2 update software and prepare it for use
- Prerequisites for update from 7.2/7.2.1 to 7.2.2
- Instructions for updating from 7.2 or 7.2.1 to 7.2.2
- What you need to do after installing the 7.2.2 update
- Changing from single NIC to multi-NIC (optional)
- Instructions for recovering from a failed 7.2.2 update
- REST API call to upload the 7.2.2 update file
- Glossary
- Index

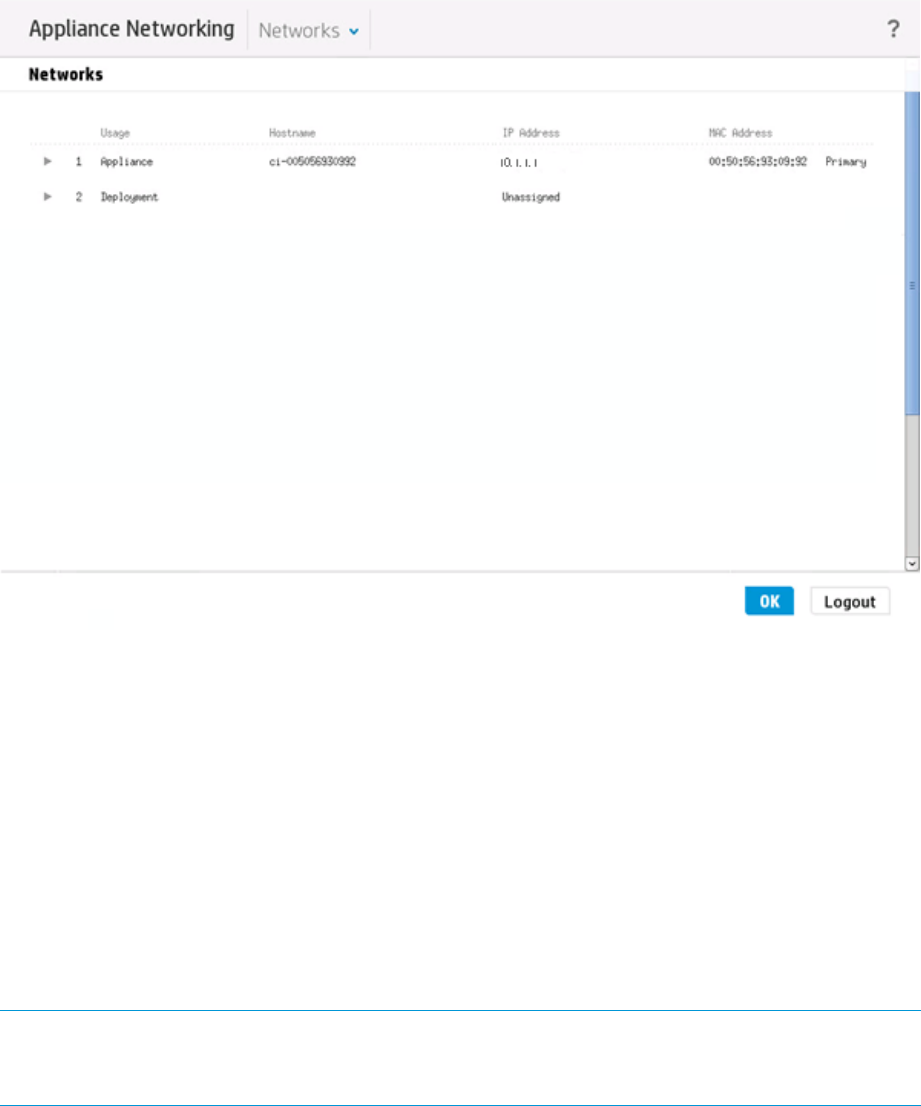

Figure 7 Appliance Networking screen
The next step is to configure the Appliance IP:
• “Configure Appliance IP” (page 23)
And then you configure the Deployment IP on the same or a different network:
• “Configure Deployment IP on the same network” (page 25)
• “Configure Deployment IP on a different network” (page 26)
• “Check for errors in first time setup” (page 27)
Configure Appliance IP
To begin configuring the Appliance IP, select the 1 Appliance network interface in the Appliance
Networking screen. A set of fields is displayed for you to configure the Appliance IP (as shown
below).
NOTE: If your appliance received a DHCP address from a server on the network, some of the
networking values may already be populated. Any DHCP assigned address must be replaced by
a permanent static IP address. DHCP will not be enabled once the appliance is set up.
Log in to the appliance and configure appliance networking 23
