1. Log in with Administrator privileges.
2. Select Cluster Administration→Logical Group Management→Create a Logical Group.

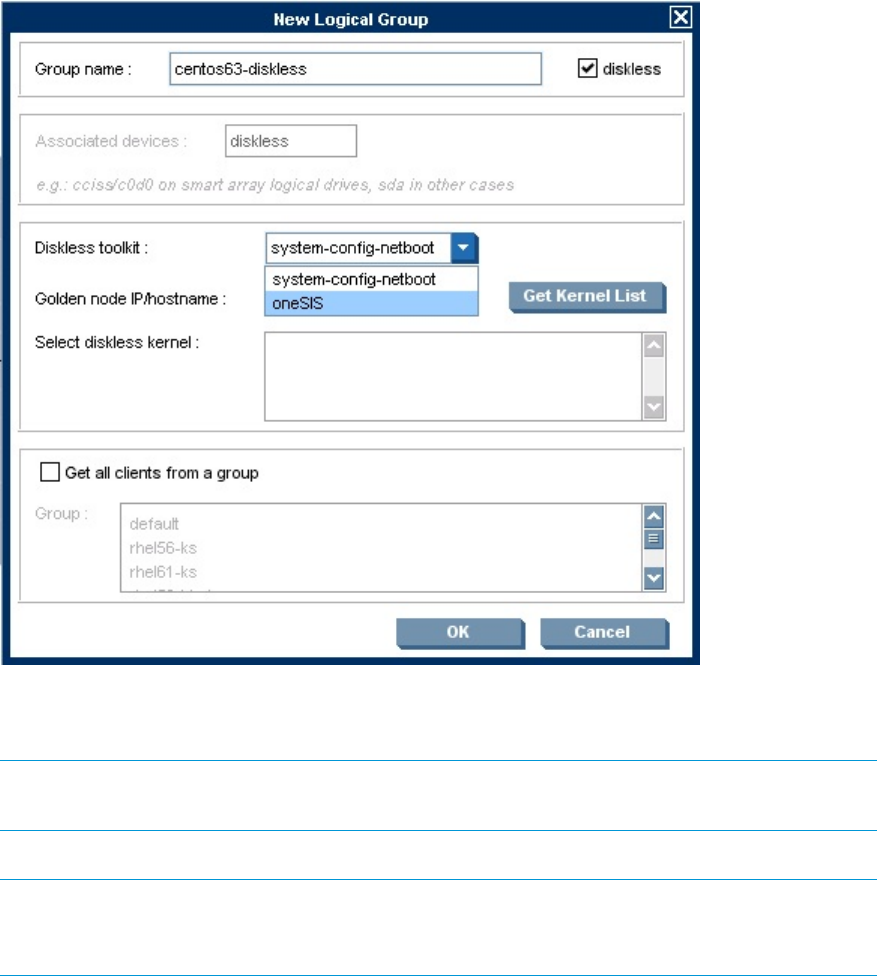

3. In the New Logical Group window, enter a name for this diskless logical group.
4. Check the diskless box.
NOTE: If the diskless box is not available, then add CMU_DISKLESS=true to /opt/cmu/
etc/cmuserver.conf and restart the GUI.
5. In the Diskless toolkit drop-down box, select oneSIS.
NOTE: If oneSIS is not available, then add oneSIS to the
CMU_VALID_DISKLESS_TOOLKITS variable in /opt/cmu/etc/cmuserver.conf and
restart the GUI.
6. Enter the Golden node host name.
7. Click Get Kernel List to retrieve the list of existing kernels on the golden node.
8. Select the desired kernel version string for PXE-booting the diskless image.
9. Click OK.
A terminal window displays the status of HP Insight CMU extracting the golden image from
the golden node and preparing the image for diskless bootup.
To create the same oneSIS diskless logical group using the HP Insight CMU command line:
# /opt/cmu/bin/cmu_add_logical_group –n <logical group name> -d diskless-oneSIS –k <kernel version> -I <golden
node>
The -k option parameter must be the kernel version of the kernel that exists on the golden node
and the one you want to boot diskless (for example, the output of uname –r on the golden node).
5.8 HP Insight CMU diskless environments 79
